Eight Pad Vacuum Lifter Lifting Frames
For Standard Eight Pad Lifters with Adjustable Crossarms – Capacity up to 2100 lb (953 kg)

VPF-57-DCP-L210M8-110-4_441
VPF-57_20-AIR-L210M8-110-4_44
M150M-L210M8-110-4_44
VPFL4-AC_L210M8-110-4_44
VPF-57-AC-L210M8-110-4_44
previous arrow
next arrow

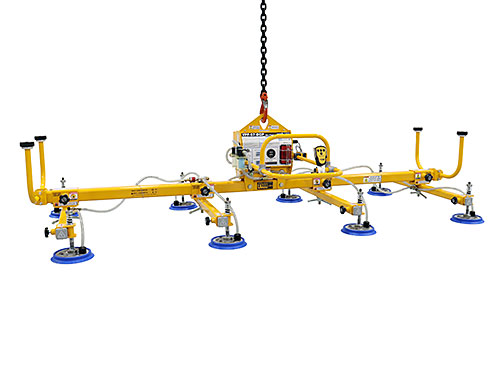

VPF-57-DCP-L210M8-110-4_441
VPF-57_20-AIR-L210M8-110-4_44

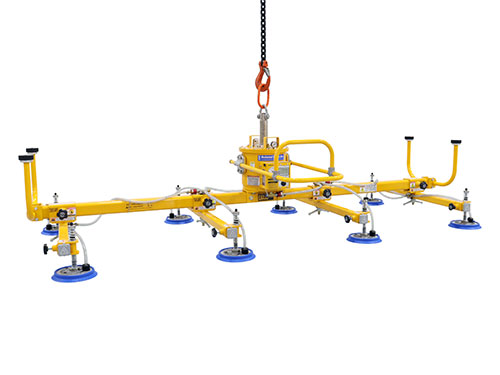

M150M-L210M8-110-4_44
VPFL4-AC_L210M8-110-4_44

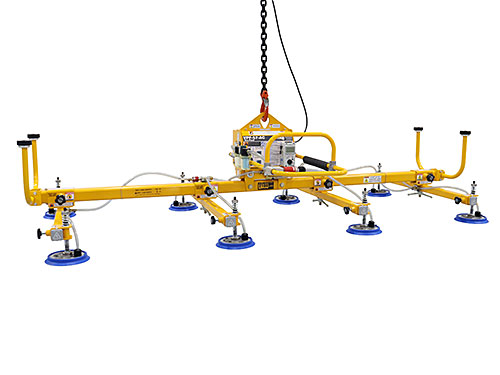

VPF-57-AC-L210M8-110-4_44

ANVER’S Standard Vacuum Lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s Standard Horizontal Vacuum Lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER Vacuum Lifters comply fully with and meet the standards of US ANSI ASME Standard B30.20 for below-the-hook lifting devices, as well as complying with OSHA and most European requirements.

L210M8-110-4/44 eight-pad lifting frame is ideal for handling carbon steel and stainless steel sheets and plates with a maximum capacity of 2100 lb (953 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs. Foam pads are not available for mechanical vacuum generators.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.

Standard Rubber Seal Lifting Frames Specifications

Compatible Vacuum Generators
Mechanical Air or Electric Air, Electric or Battery* Electric Battery*
M150M_190x163 VPFL4-AIR_190x83 VPF-57-AIR_190x129 VPE1-GEN2_190x275 BAE1-GEN2_190x213
M150M-Series VPFL4-Series VPF-57-Series VPE1-GEN3-Series BAE1-GEN3-Series

Request For Quote
Lifting Frame NumberL210M8-110-4/44
Rated Load Capacity [lbs (kg)]2100 (953)
Unit Weight [lbs (kg)]250 (113)
A Lifting Frame Headroom [in. (mm)]10 (254)
B Spreader Beam Length [in. (mm)]112 (2845)
C Hardware Mounting Centers [in. (mm)]9 (229)
D Pad Diameter [in. (mm)]9.13 (232)
E Outer Pad Distances Maximum [in. (mm)]117 (2972)
E Outer Pad Distances Minimum [in. (mm)]53 (1346)
F Minimum Inner Pad Distance [in. (mm)]34 (864)
G Crossarm Length [in. (mm)]44 (1118)
H Outer Pad Distances Maximum [in. (mm)]50 (1270)
H Outer Pad Distances Minimum [in. (mm)]23 (584)
Maximum Sheet Size [ft (M)]12 x 6 (3.7 x 1.8)
Seal NumberSSR-92
Optional Parking StandsPS-150-3X3

*Battery powered vacuum generators are only recommended when handling non-porous loads.

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

Crossarms and vacuum pads in maximum position to handle maximum plate size.

Vacuum pads and crossarms fully adjustable to handle short and narrow plates.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.

Inner crossarms and vacuum pads (1/2 capacity) for use with smaller plates. Outer crossarms provided with shut-off valves.
