MSPX Series Multi-Stage Air Powered Vacuum Pumps

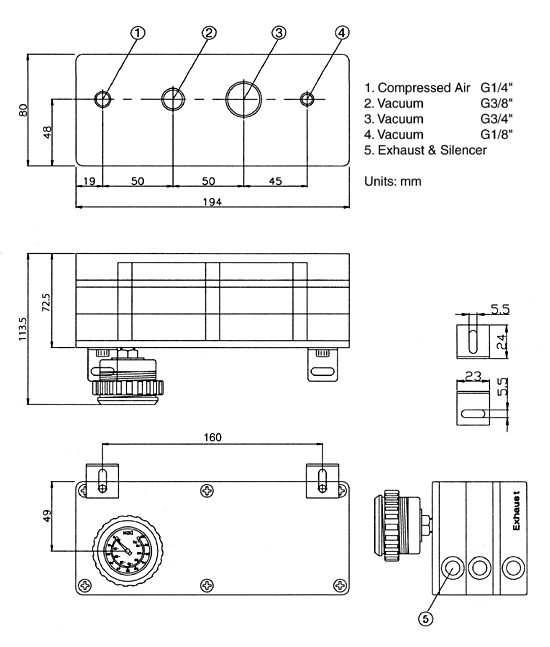

Model No.: MSP100X

ANVER MSPX Series Multi-Stage Air Powered Vacuum Pumps

Part
Number
Max. Vacuum
Flow
in. Hg
(mm Hg)
Vacuum Flow
SCFM
(l/min.)
Air Consumption
SCFM
(l/min.)
Length
in.
(mm)
Width
in.
(mm)
Height
in.
(mm)
Adapters for
G to NPT
Attachment

MSP100X

27
(690)

23.44
(664)

13.55
(385)

7.63
(194)

2.44
(62)

3.15
(80)

The “G” thread is a straight pipe thread also known as BSPP, NPS, or G, commonly used in Europe, Asia, and most of the world.
