Four Pad Vacuum Lifter Lifting Frames
For Standard Four Pad Lifters – Capacity up to 2000 lb (907 kg)

The L200M4-86, -110, -150, and -190 four-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 2000 lb (907 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames

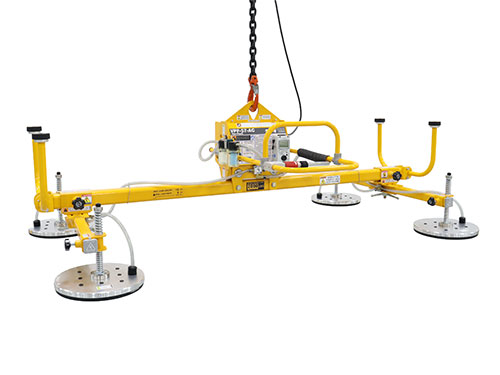

M150M with L200M4-86 VPF-57-AC with L200M4-86
M150M_L200M4-86_noload VPF-57-AC_L200M4-86_noload
Description Self-Powered, Mechanical Vacuum Generator with Four Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Four Pad Lifting Frame
Max Sheet Size Lifting & Handling Steel Sheets 9 ft x 6 ft (2.7m x 1.8m) up to 2000 lb (907 kg) Max Sheet Size Lifting & Handling Steel Sheets 9 ft x 6 ft (2.7m x 1.8m) up to 2000 lb (907 kg)

Click to Request More Information Click to Request More Information

M150M with L200M4-110 VPFL4-AC with L200M4-110
ANVER Electric Powered Vacuum Generator with Four Pad Inline Lifting Frame with Foam Pads and Custom Pendant Holster for Lifting & Handling Refrigeration Units 12 ft x 5 ft (3.6 m x 1.5 m) up to 1000 lb (454 kg)
Description Self-Powered, Mechanical Vacuum Generator with Four Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Four Pad Lifting Frame
Max Sheet Size Lifting & Handling Steel Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 2000 lb (907 kg) Max Sheet Size Lifting & Handling Steel Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 2000 lb (907 kg)
Options Shown Parking Stands: PS-250
Click to Request More Information Click to Request More Information

M150M with L200M4-150 VPF-57HD-AIR with L200M4-150
 m150m-l200m4-150
Description Self-Powered, Mechanical Vacuum Generator with Four Pad Lifting Frame Description:  Air Powered Vacuum Generator with Four Pad Lifting Frame
Max Sheet Size Lifting & Handling Steel Sheets 16 ft x 6 ft (4.9 m x 1.8 m) up to 2000 lb (907 kg) Max Sheet Size Lifting & Handling Steel Sheets 16 ft x 6 ft (4.9 m x 1.8 m) up to 2000 lb (907 kg)
    Options Shown Parking Stands: PS-250
Click to Request More Information Click to Request More Information

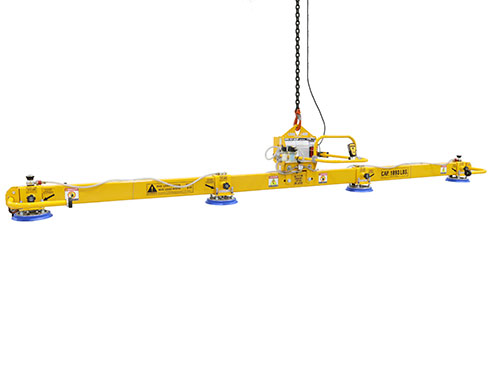

M150M with L200M4-190 VPF-57HD-AC with L200M4-190
ANVER Three Pad Self-Powered Mechanical Vacuum Lifter ANVER Four Pad In-Line Electric Powered Vacuum Lifter for Lifting Steel Sheet 20 ft x 6 ft (6.0 m x 1.7 m) weighing up to 2000 lb (907 kg)
Description Self-Powered, Mechanical Vacuum Generator with Four Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Four Pad Lifting Frame
Max Sheet Size Lifting & Handling Steel Sheets 20 ft x 6 ft (6.2 m x 1.8 m) up to 2000 lb (907 kg) Max Sheet Size Lifting & Handling Steel Sheets 20 ft x 6 ft (6.2 m x 1.8 m) up to 2000 lb (907 kg)
Options Shown Parking Stands: PS-250
Click to Request More Information Click to Request More Information




Standard Rubber Seal Lifting Frames Specifications


76500011-012
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Pad
Diameter
B
Lifting
Frame
Headroom
C
Beam
Length
D
Hardware
Mounting
Centers
E
Outer Pad Distances
F
Minimum
Inner
Pad
Distance
Seal
Number
Maximum Minimum

L200M4-86 2000 lb
907 kg
175 lb
79 kg
12.6 in.
320 mm
5.5 in.
140 mm
88 in.
2235 mm
9 in.
229 mm
91 in.
2311 mm
60 in.
1524 mm
34 in.
864 mm
SSR-126

L200M4-110 2000 lb
907 kg
200 lb
91 kg
12.6 in.
320 mm
5.5 in.
140 mm
112 in.
2845 mm
9 in.
229 mm
115 in.
2921 mm
60 in.
1524 mm
34 in.
864 mm
SSR-126

L200M4-150 2000 lb
907 kg
260 lb
118 kg
12.6 in.
320 mm
7.2 in.
183 mm
150 in.
3810 mm
9 in.
229 mm
156 in.
3962 mm
60 in.
1524 mm
34 in.
864 mm
SSR-126

L200M4-190 2000 lb
907 kg
300 lb
136 kg
12.6 in.
320 mm
7.2 in.
183 mm
190 in.
4826 mm
9 in.
229 mm
196 in.
4978 mm
60 in.
1524 mm
34 in.
864 mm
SSR-126



Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.


76500570-571
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A1
Pad
Size
A2
Pad
Size
B
Lifting
Frame
Headroom
C
Beam
Length
D
Hardware
Mounting
Centers
E
Outer Pad Distances
F
Minimum
Inner
Pad
Distance
Seal
Number
Maximum Minimum

L200M4-86FP 2000 lb
907 kg
205 lb
93 kg
10 in.
254 mm
14 in.
356 mm
5.5 in.
140 mm
88 in.
2235 mm
9 in.
229 mm
88 in.
2235 mm
51 in.
1295 mm
31 in.
787 mm
FR100140

L200M4-110FP 2000 lb
907 kg
230 lb
104 kg
10 in.
254 mm
14 in.
356 mm
5.5 in.
140 mm
112 in.
2845 mm
9 in.
229 mm
112 in.
2845 mm
51 in.
1295 mm
31 in.
787 mm
FR100140



Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ Minimum Pad Distances position to handle smaller plate sizes.

Vacuum pads moved inward to ‘F’ Minimum Pad Distances position to handle smaller plate sizes.





Click Here to See More Details of Different Suction Cup and Vacuum Cup Materials
