Three Pad Vacuum Lifter Lifting Frames
For Standard Three Pad Lifters – Capacity up to 3300 lb (1497 kg)

The L330M3-86, -110, and -150 three-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a maximum capacity of 3300 lb (1497 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames

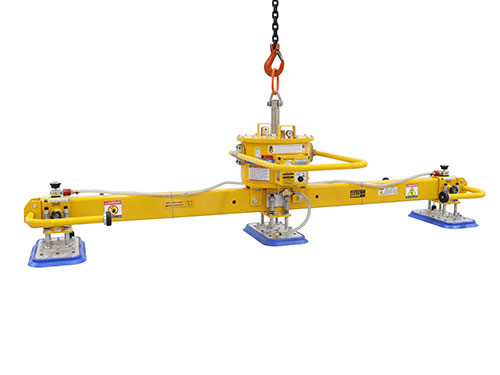

M250M with L330M3-86 VPF-57HD-AC with L330M3-86
m250m-l330m3-86 ANVER Three Pad Electric Powered Vacuum Lifter for Lifting Steel Sheets, 10 ft x 6 ft (3.0 m x 1.8 m) up to 3000 lb (1361 kg)
Description Self-Powered, Mechanical Vacuum Generator with Three Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Three Pad Lifting Frame
Max Sheet Size Lifting & Handling Steel Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 3300 lb (1497 kg) Max Sheet Size Lifting & Handling Steel Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 3300 lb (1497 kg)
    Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

M250M with L330M3-110 VPF-57HD-AC with L330M3-110
ANVER Three Pad Electric Powered Vacuum Lifter for Lifting Steel Sheets, 10 ft x 6 ft (3.0 m x 1.8 m) up to 3000 lb (1361 kg)
Description Self-Powered, Mechanical Vacuum Generator with Three Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Three Pad Lifting Frame
Max Sheet Size Lifting & Handling Steel Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 3300 lb (1497 kg) Max Sheet Size Lifting & Handling Steel Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 3300 lb (1497 kg)
Options Shown Parking Stands: PS-250 Options Shown Parking Stands: PS-250
Click to Request More Information Click to Request More Information

M250M with L330M3-150 VPE1-HD with L330M3-150
 vpe1-hd-l330m3-150
Description Self-Powered, Mechanical Vacuum Generator with Three Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Three Pad Lifting Frame
Max Sheet Size Lifting & Handling Steel Sheets 16 ft x 6 ft (4.9 m x 1.8 m) up to 3300 lb (1497 kg) Max Sheet Size Lifting & Handling Steel Sheets 16 ft x 6 ft (4.9 m x 1.8 m) up to 3300 lb (1497 kg)
Options Shown Parking Stands: PS-250
Click to Request More Information Click to Request More Information




Standard Rubber Seal Lifting Frames Specifications


76500077-079
Lifting
Frame
Number

Rated
Load
Capacity
lb
(kg)

Unit
Weight
lb
(kg)

A
Lifting
Frame
Headroom
in.
(mm)

B
Beam
Length
in.
(mm)

C
Hardware Mounting Centers
in.
(mm)

D
Pad Dimensions
in.
(mm)

E Pad Distances
in.
(mm)

Seal
Number
Standard Inner
Alternate
Outer
Alternate
Width Length Maximum Minimum
with M250M
Minimum
with VPF-57HD
Minimum
with VPE1-H
Minimum
with VPE3-S

L330M3-86

3300
(1497)

219
(99)

10
(254)

86
(2184)

9
(229)

12
(305)

22.38
(568)

12.1
(307)

20.5
(521)

92
(2337)

37
(940)

37
(940)

37
(940)

43
(1092)

SSR-1220

L330M3-110

3300
(1497)

240
(109)

10
(254)

110
(2794)

9
(229)

12
(305)

22.38
(568)

12.1
(307)

20.5
(521)

116
(2946)

37
(940)

37
(940)

37
(940)

43
(1092)

SSR-1220

L330M3-150

3300
(1497)

276
(125)

10
(254)

150
(3810)

9
(229)

12
(305)

22.38
(568)

12.1
(307)

20.5
(521)

156
(3962)

37
(940)

37
(940)

37
(940)

43
(1092)

SSR-1220



Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

Vacuum pads in the ‘E’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ Minimum Pad Distances position to handle smaller plate sizes.

Center vacuum pad used for short and narrow plates. Outer vacuum pads provided with shut-off valves.









13600055 A
