Powered Vacuum Lifters
Single Pad Powered Lifters with Powered Tilting



Standard Single Pad Tilters
Capacity: 500 lb (227 kg)

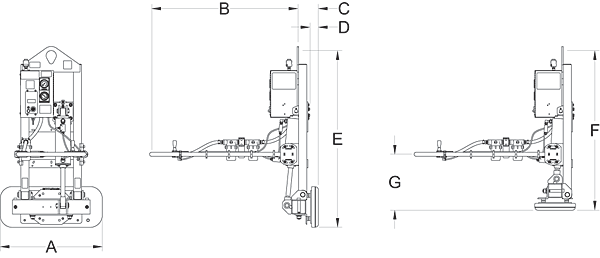

Standard Air Powered Rubber Seal Tilters Specifications

Lifting
Frame Number
Rated
Load
Capacity
Unit
Weight
A
Pad Dimension
B
Handlebar
Length
C
Pad Distances
From Lifting Bail
D
Pad Distances
From Frame
E
Maximum
Headroom Vertical
F
Maximum
Headroom Horizontal
G
Pad Distances
From Handlebar
Maximum
Plate
Thickness
Pad
Number

AT50S-1220 500 lbs
227 Kg
140 lbs
64 Kg
12.1 x 20.5 in.
307 x 521 mm
36 in.
914 mm
5 in.
127 mm
2 in.
51 mm
45 in.
1143 mm
39 in.
991 mm
14 in.
356 mm
1.19 in.
30 mm
VP1220



Standard Electric Powered Rubber Seal Tilters Specifications

Lifting
Frame Number
Rated
Load
Capacity
Unit
Weight
A
Pad Dimension
B
Handlebar
Length
C
Pad Distances
From Lifting Bail
D
Pad Distances
From Frame
E
Maximum
Headroom Vertical
F
Maximum
Headroom Horizontal
G
Pad Distances
From Handlebar
Maximum
Plate
Thickness
Pad
Number

ET50S-1220 500 lbs
227 Kg
170 lbs
77 Kg
12.1 x 20.5 in.
307 x 521 mm
36 in.
914 mm
5 in.
127 mm
2 in.
51 mm
45 in.
1143 mm
39 in.
991 mm
14 in.
356 mm
1.19 in.
30 mm
VP1220



Standard Air Powered Foam Seal Tilters Specifications

Lifting
Frame Number
Rated
Load
Capacity
Unit
Weight
A
Pad Dimension
B
Handlebar
Length
C
Pad Distances
From Lifting Bail
D
Pad Distances
From Frame
E
Maximum
Headroom Vertical
F
Maximum
Headroom Horizontal
G
Pad Distances
From Handlebar
Maximum
Plate
Thickness
Pad
Number

AT50S-FP 500 lbs
227 Kg
140 lbs
64 Kg
10 x 25 in.
254 x 356mm
36 in.
914 mm
5 in.
127 mm
2 in.
51 mm
44 in.
1118 mm
40 in.
1016 mm
14 in.
356 mm
1.19 in.
30 mm
FP100250



Standard Electric Powered Foam Seal Tilters Specifications

Lifting
Frame Number
Rated
Load
Capacity
Unit
Weight
A
Pad Dimension
B
Handlebar
Length
C
Pad Distances
From Lifting Bail
D
Pad Distances
From Frame
E
Maximum
Headroom Vertical
F
Maximum
Headroom Horizontal
G
Pad Distances
From Handlebar
Maximum
Plate
Thickness
Pad
Number

ET50S-FP 500 lbs
227 Kg
190 lbs
86 Kg
10 x 25 in.
254 x 356mm
36 in.
914 mm
5 in.
127 mm
2 in.
51 mm
44 in.
1118 mm
40 in.
1016 mm
14 in.
356 mm
1.19 in.
30 mm
FP100250
