Six Pad Vacuum Lifter Lifting Frames
For Standard Six Pad Lifters with Adjustable Crossarms – Capacity up to 1200 lb (544 kg)

The L120M6-86-3/44 and -110-3/44 six-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 1200 lb (544 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames

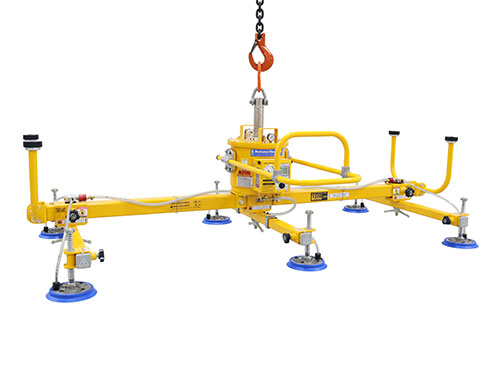

M150M with L120M6-86-3/44 VPF-57-AC with L120M6-86-3/44
ANVER Six Pad Self-Powered Mechanical Vacuum Lifter
Description Self-Powered, Mechanical Vacuum Generator with Six Pad Lifting Frame Description:  Air Powered Vacuum Generator with Six Pad Lifting Frame
Max Sheet Size Lifting & Handling  Sheets, 10 ft x 6 ft (3.1 m x 1.8 m) up to 1200 lb (544 kg) Max Sheet Size Lifting & Handling  Sheets, 10 ft x 6 ft (3.1 m x 1.8 m) up to 1200 lb (544 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

M150M with L120M6-110-3/44 VPF-57-AIR with L120M6-110-3/44
ANVER Six Pad Self-Powered Mechanical Vacuum Lifter
Description Self-Powered, Mechanical Vacuum Generator with Six Pad Lifting Frame Description:  Air Powered Vacuum Generator with Six Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 1200 lb (544 kg) Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 1200 lb (544 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information



Standard Rubber Seal Lifting Frames Specifications


76500063-065
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Spreader
Beam
Length
C
Hardware
Mounting
Centers
D
Pad
Diameter
E
Pad Distances
F
Crossarm
Length
G
Pad Distances
Seal
Number
Maximum Minimum Maximum Minimum

L120M6-86-3/44 1200 lb
544 kg
168 lb
76 kg
10 in.
254 mm
88 in.
2235 mm
9 in.
229 mm
8.8 in.
224 mm
90 in.
2870 mm
34 in.
864 mm
44 in.
1118 mm
49 in.
1245 mm
21 in.
533 mm
SSR-86

L120M6-110-3/44 1200 lb
544 kg
181 lb
82 kg
10 in.
254 mm
112 in.
2845 mm
9 in.
229 mm
8.8 in.
224 mm
114 in.
2896 mm
34 in.
864 mm
44 in.
1118 mm
49 in.
1245 mm
21 in.
533 mm
SSR-86



Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.


76500102
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Spreader
Beam
Length
C
Hardware
Mounting
Centers
D
Pad
Diameter
E
Pad Distances
F
Crossarm
Length
G
Pad Distances
Seal
Number
Maximum Minimum Maximum Minimum

L120M6-86-3/44FP 1200 lb
544 kg
170 lb
77 kg
11 in.
279 mm
88 in.
2235 mm
9 in.
229 mm
9.5 in.
241 mm
91 in.
2311 mm
35 in.
889 mm
44 in.
1118 mm
50 in.
1270 mm
22 in.
559 mm
FR98

L120M6-110-3/44FP 1200 lb
544 kg
183 lb
83 kg
11 in.
279 mm
112 in.
2845 mm
9 in.
229 mm
9.5 in.
241 mm
115 in.
2921 mm
35 in.
889 mm
44 in.
1118 mm
50 in.
1270 mm
22 in.
559 mm
FR98



Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ and ‘G’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ and ‘G’ Minimum Pad Distances position to handle smaller plate sizes.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.

Center vacuum pads used for short and narrow plates. Outer vacuum pads provided with shut-off valves.



Click Here to See More Details of Different Suction Cup and Vacuum Cup Materials
