Eight Pad Vacuum Lifter Lifting Frames
For Standard Eight Pad Lifters with Adjustable Crossarms – Capacity up to 1200 lb (544 kg)

The L120M8-86-4/44, -110-4/44, -150-4/44, and -190-4/44 eight-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 1200 lb (544 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames

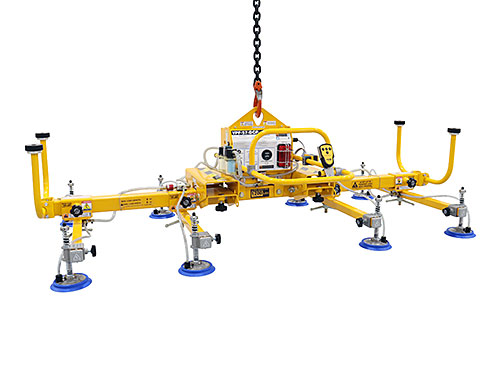

M150M with L120M8-86-4/44 VPF-57-AC with L120M8-86-4/44
M150M with L120M8-86-4_44 ANVER Eight Pad Air Powered Vacuum Lifter for Lifting Steel Sheets 10 ft x 6 ft (3 m x 1.8 m) up to 1200 lb (544 kg)
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling  Sheets 9 ft x 6 ft (2.7 m x 1.8 m) up to 1200 lb (544 kg) Max Sheet Size Lifting & Handling  Sheets 9 ft x 6 ft (2.7 m x 1.8 m) up to 1200 lb (544 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

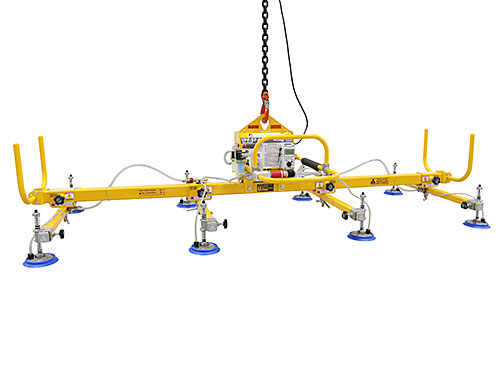

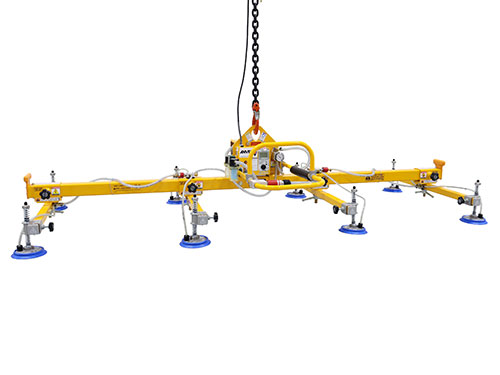

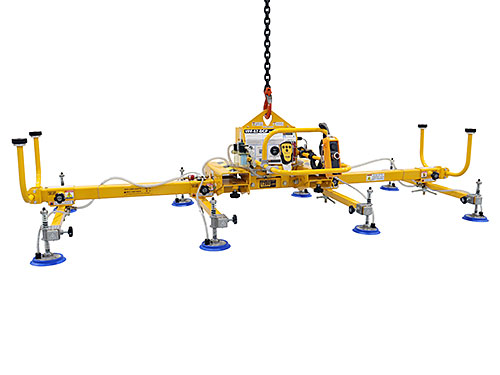

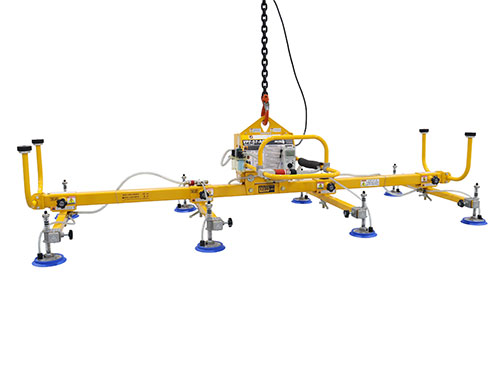

M150M with L120M8-110-4/44 VPF-57-AC with L120M8-110-4/44
m150m-l120m8-110-4^44 ANVER Eight Pad Electric Powered Vacuum Lifter for Lifting Steel Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 1200 lb (544 kg)
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 1200 lb (544 kg) Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 1200 lb (544 kg)
    Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information


Standard Rubber Seal Lifting Frames Specifications


76500032-033
Lifting
Frame

Number
Rated
Load
Capacity
lb
(kg)
Unit
Weight
lb
(kg)
A
Lifting
Frame
Headroom
in.
(mm)
B
Spreader
Beam
Length
in.
(mm)
C
Hardware
Mounting
Centers
in.
(mm)
D
Pad
Diameter
in.
(mm)
Outer Pad
Distances
in.
(mm)
F
Minimum
Inner
Pad
Distance
in.
(mm)
G
Crossarm
Length
in.
(mm)
Outer Pad
Distances
in.
(mm)
Seal
Number
E1
Max.
E2
Min.
H1
Max.
H2
Min.

L120M8-86-4/44 1200
(544)
173
(78)
10
(254)
88
(2235)
9
(229)
7.8
(198)
90
(2286)
49
(1245)
32
(813)
44
(1118)
48
(1219)
20
(508)
SSR-76

L120M8-110-4/44 1200
(544)
188
(85)
10
(254)
112
(2845)
9
(229)
7.8
(198)
114
(2896)
49
(1245)
32
(813)
44
(1118)
48
(1219)
20
(508)
SSR-76



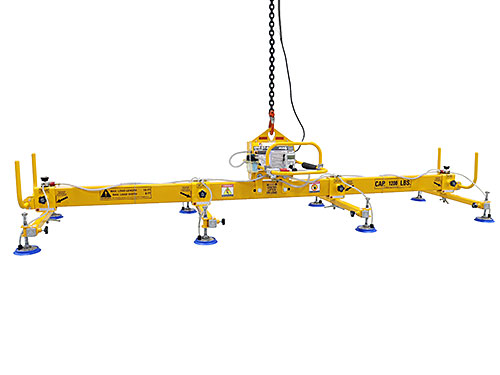

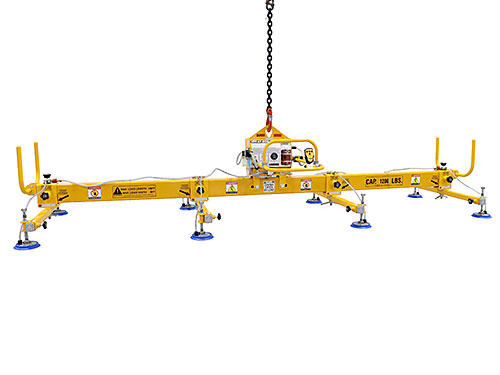

76500108-111-WEB
76500108-111
Lifting
Frame

Number
Rated
Load
Capacity
lb
(kg)
Unit
Weight
lb
(kg)
A
Lifting
Frame
Headroom
in.
(mm)
B
Spreader
Beam
Length
in.
(mm)
C
Pad
Diameter
in.
(mm)
Outer Pad
Distances
in.
(mm)
E
Minimum
Inner
Pad
Distance
in.
(mm)
F
Crossarm
Length
in.
(mm)
Outer Pad
Distances
in.
(mm)
Hardware
Mounting
Centers
in.
(mm)
Seal
Number
D1
Max.
D2
Min.
G1
Max.
G2
Min.
H1 H2 H3

L120M8-150-4/44 1200
(544)
310
(141)
11.5
(292)
150
(3810)
7.8
(198)
156
(3962)
49
(1245)
32
(813)
44
(1118)
48
(1219)
20
(508)
9
(229)
12
(305)
N/A SSR-76

L120M8-190-4/44 1200
(544)
350
(159)
11.5
(292)
190
(4826)
7.8
(198)
196
(4978)
49
(1245)
32
(813)
44
(1118)
48
(1219)
20
(508)
9
(229)
12
(305)
N/A SSR-76



Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.


76500582
Lifting
Frame

Number
Rated
Load
Capacity
lb
(kg)
Unit
Weight
lb
(kg)
A
Lifting
Frame
Headroom
in.
(mm)
B
Spreader
Beam
Length
in.
(mm)
C
Hardware
Mounting
Centers
in.
(mm)
D
Pad
Diameter
in.
(mm)
Outer Pad
Distances
in.
(mm)
F
Minimum
Inner
Pad
Distance
in.
(mm)
G
Crossarm
Length
in.
(mm)
Outer Pad
Distances
in.
(mm)
Seal
Number
E1
Max.
E2
Min.
H1
Max.
H2
Min.

L120M8-86-4/44FP 1200
(544)
175
(79)
11
(279)
88
(2235)
9
(229)
8.25
(210)
91
(2296)
57
(1448)
33
(838)
44
(1118)
49
(1245)
23
(584)
FR88

L120M8-110-4/44FP 1200
(544)
190
(86)
11
(279)
112
(2845)
9
(229)
8.25
(210)
115
(2921)
57
(1448)
33
(838)
44
(1118)
49
(1245)
23
(584)
FR88



Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ and ‘H’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ and ‘H’ Minimum Pad Distances position to handle smaller plate sizes.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.

Center vacuum pads used for short and narrow plates. Outer vacuum pads provided with shut-off valves.





Click Here to See More Details of Different Suction Cup and Vacuum Cup Materials

13600074 A
