Six Pad Vacuum Lifter Lifting Frames
For Standard Six Pad Lifters with Adjustable Crossarms – Capacity up to 1500 lb (680 kg)

The L150M6-86-3/44 and -110-3/44 six-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 1500 lb (680 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames
M150M with L150M6-86-3/44 VPF-57-AC with L150M6-86-3/44

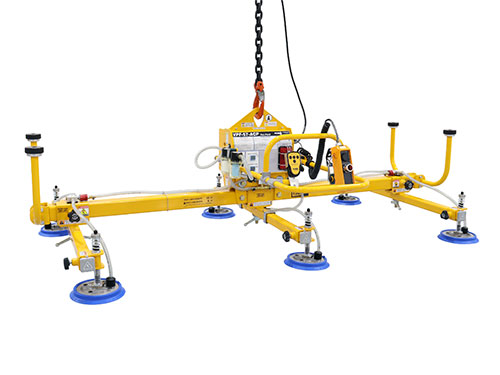

ANVER Standard Six Pad Self-Powered Mechanical Vacuum Lifter with Adjustable Pivoting Crossarms ANVER Six Pad Lifting Frame with Electric Powered Vacuum Generator for Lifting & Handling Steel Sheet 10 ft x 6 ft (3.1 m x 1.8 m) weighing up to 1500 lb (680 Kg)
Description Self-Powered, Mechanical Vacuum Generator with Six Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Six Pad Lifting Frame
Max Sheet Size Lifting & Handling  Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 1500 lb (680 kg) Max Sheet Size Lifting & Handling  Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 1500 lb (680 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

M150M with L150M6-110-3/44 VPF-57-AIR with L150M6-110-3/44

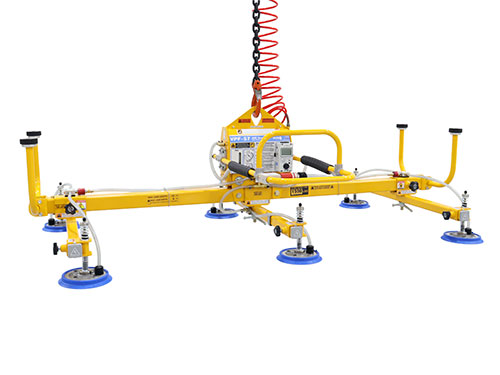

M150M_L150M6-110-3_44 ANVER Six Pad Electric Powered Vacuum Lifter for Lifting Steel Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 1500 lb (680 Kg)

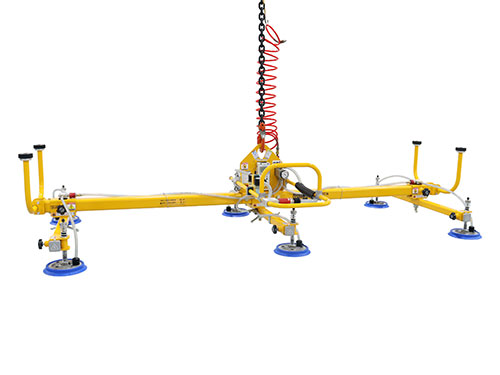

Description Self-Powered, Mechanical Vacuum Generator with Six Pad Lifting Frame Description:  Air Powered Vacuum Generator with Six Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 1500 lb (680 kg) Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 1500 lb (680 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

M150M with L150M6-150-3/44 VPF-57-AIR with L150M6-110-3/44
M150M_L150M6-150-3_44 Photo to Come
Description Self-Powered, Mechanical Vacuum Generator with Six Pad Lifting Frame Description:  Air Powered Vacuum Generator with Six Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 16 ft x 6 ft (4.9 m x 1.8 m) up to 1500 lb (680 kg) Max Sheet Size Lifting & Handling Sheets 16 ft x 6 ft (4.9 m x 1.8 m) up to 1500 lb (680 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

Standard Rubber Seal Lifting Frames Specifications

Request For Quote
Lifting Frame NumberL150M6-86-3/44L150M6-110-3/44
Rated Load Capacity [lbs (kg)]1500 (680)1500 (680)
Unit Weight [lbs (kg)]178 (81)240 (109)
A Lifting Frame Headroom [in. (mm)]10 (254)10 (254)
B Spreader Beam Length [in. (mm)]88 (2235)112 (2845)
C Hardware Mounting Centers [in. (mm)]9 (229)9 (229)
D Pad Diameter [in. (mm)]9.25 (235)9.25 (235)
E Pad Distances Maximum [in. (mm)]89 (2261)113 (2870)
E Pad Distances Minimum [in. (mm)]34 (864)34 (864)
F Crossarm Length [in. (mm)]44 (1118)44 (1118)
G Pad Distances Maximum [in. (mm)]48 (1219)48 (1219)
G Pad Distances Minimum [in. (mm)]22 (559)22 (559)
Maximum Sheet Size [ft (M)]10 x 6 (3.0 x 1.8)12 x 6 (3.7 x 1.8)
Seal NumberSSR-90SSR-90

Request For Quote
Lifting Frame NumberL150M6-150-3/44
Rated Load Capacity [lbs (kg)]1500 (680)
Unit Weight [lbs (kg)]290 (132)
A Lifting Frame Headroom [in. (mm)]12 (305)
B Spreader Beam Length [in. (mm)]150 (3810)
C Crossarm Length [in. (mm)]44 (1118)
D Pad Diameter [in. (mm)]9.25 (235)
E Outer Pad Distances Maximum [in. (mm)]155 (3937)
E Outer Pad Distances Minimum [in. (mm)]43 1092)
F Outer Pad Distances Maximum [in. (mm)]48 (1219)
F Outer Pad Distances Minimum [in. (mm)]22 (559)
G1 Standard Hardware Mtg. Centers [in. (mm)]9 (229)
G2 Inner Alternate Hardware Mtg. Centers [in. (mm)]12 (305)
G3 Outer Alternate Hardware Mtg. Centers [in. (mm)]22.38 (568)
Maximum Sheet Size [ft (M)]16 x 8 (4.9 x 2.4)
Seal NumberSSR-90

Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.

Request For Quote
Lifting Frame NumberL150M6-86-3/44FPL150M6-110-3/44FP
Rated Load Capacity [lbs (kg)]1500 (680)1500 (680)
Unit Weight [lbs (kg)]270 (122)300 (136)
A Lifting Frame Headroom [in. (mm)]11.5 (292)11.5 (292)
B Spreader Beam Length [in. (mm)]88 (2235)112 (2845)
C Hardware Mounting Centers [in. (mm)]9 (229)9 (229)
D Pad Diameter [in. (mm)]12 (305)12 (305)
E Pad Distances Maximum [in. (mm)]94 (2388)118 (2997)
E Pad Distances Minimum [in. (mm)]46 (1168)46 (1168)
F Crossarm Length [in. (mm)]44 (1118)44 (1118)
G Pad Distances Maximum [in. (mm)]52 (1321)52 (1321)
G Pad Distances Minimum [in. (mm)]26 (660)26 (660)
Maximum Sheet Size [ft (M)]10 x 6 (3.0 x 1.8)12 x 6 (3.7 x 1.8)
Seal NumberFR128FR128

Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ and ‘G’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ and ‘G’ Minimum Pad Distances position to handle smaller plate sizes.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.


Center vacuum pads used for short and narrow plates. Outer vacuum pads provided with shut-off valves.
