Eight Pad Vacuum Lifter Lifting Frames
For Standard Eight Pad Lifters with Adjustable Crossarms – Capacity up to 1600 lb (730 kg)

The L160M8-86-4/44 and -110-4/44 eight-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 1600 lb (730 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames
M150M with L160M8-86-4/44 VPF-57-AC with L160M8-86-4/44
ANVER M160M8-86-4/44 Self Powered Mechanical Vacuum Lifter
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling  Sheets 9 ft x 6 ft (2.7 m x 1.8 m) up to 1600 lb (726 kg) Max Sheet Size Lifting & Handling  Sheets 9 ft x 6 ft (2.7 m x 1.8 m) up to 1600 lb (726 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

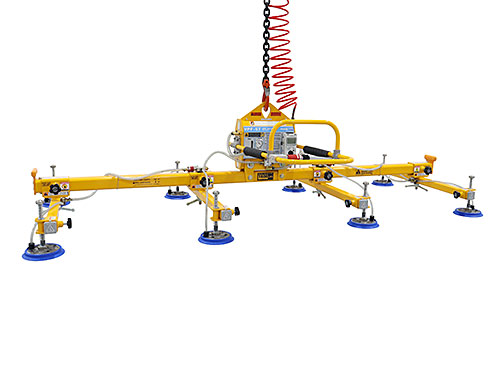

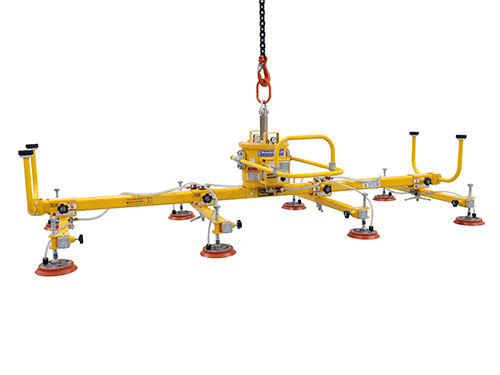

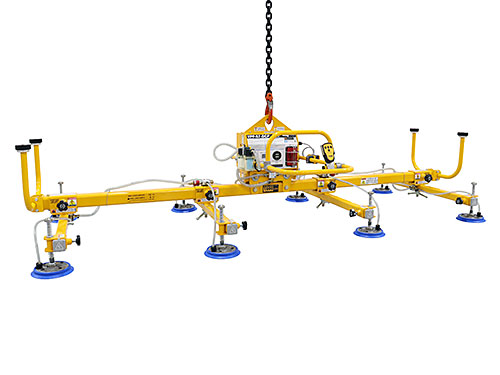

M150M with L160M8-110-4/44 VPF-57-AC with L160M8-110-4/44
M150M_L160M8-110-4_44 vpf-57-ac-l160m8-110-4^44
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 1600 lb (726 kg) Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 1600 lb (726 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information




Standard Rubber Seal Lifting Frames Specifications


76500032-033
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Spreader
Beam
Length
C
Hardware
Mounting
Centers
D
Pad
Diameter
Outer Pad Distances F
Minimum
Inner
Pad
Distance
G
Crossarm
Length
Outer Pad Distances Seal
Number
E1
Maximum
E2
Minimum
H1
Maximum
H2
Minimum

L160M8-86-4/44 1600 lb
726 kg
215 lb
98 kg
10 in.
254 mm
88 in.
2235 mm
9 in.
229 mm
8.8 in.
224 mm
92 in.
2337 mm
51 in.
1295 mm
33 in.
838 mm
44 in.
1118 mm
49 in.
1245 mm
21 in.
533 mm
SSR-86

L160M8-110-4/44 1600 lb
726 kg
280 lb
127 kg
10 in.
254 mm
112 in.
2845 mm
9 in.
229 mm
8.8 in.
224 mm
116 in.
2946 mm
51 in.
1295 mm
33 in.
838 mm
44 in.
1118 mm
49 in.
1245 mm
21 in.
533 mm
SSR-86



Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.


Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Spreader
Beam
Length
C
Hardware
Mounting
Centers
D
Pad
Diameter
Outer Pad Distances F
Minimum
Inner
Pad
Distance
G
Crossarm
Length
Outer Pad Distances Seal
Number
E1
Maximum
E2
Minimum
H1
Maximum
H2
Minimum

L160M8-86-4/44FP 1600 lb
726 kg
220 lb
100 kg
11 in.
279 mm
88 in.
2235 mm
9 in.
229 mm
9.5 in.
241 mm
93 in.
2362 mm
52 in.
1321 mm
34 in.
864 mm
44 in.
1118 mm
50 in.
1270 mm
22 in.
559 mm
FR98

L160M8-110-4/44FP 1600 lb
726 kg
285 lb
129 kg
11 in.
279 mm
112 in.
2845 mm
9 in.
229 mm
9 in.
241 mm
117 in.
2972 mm
52 in.
1321 mm
34 in.
864 mm
44 in.
1118 mm
50 in.
1270 mm
22 in.
559 mm
FR98



Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ and ‘H’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ and ‘H’ Minimum Pad Distances position to handle smaller plate sizes.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.

Center vacuum pads used for short and narrow plates. Outer vacuum pads provided with shut-off valves.
