Eight Pad Vacuum Lifter Lifting Frames
For Standard Eight Pad Lifters with Adjustable Crossarms – Capacity up to 2000 lb (907 kg)

L200M8-231-4/44 eight-pad lifting frame is ideal for handling carbon steel and stainless steel sheets and plates with a maximum capacity of 2000 lb (900 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames
M150M with L200M8-86-4/44 VPF-57-AC with L200M8-86-4/44
ANVER Eight Pad Self-Powered Mechanical Vacuum Lifter for Lifting Steel Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 2000 lb (907 kg) ANVER Eight Pad Electric Powered Vacuum Lifter for Lifting Steel Sheets 10 ft x 6 ft (3.0 m x 1.8 m) up to 2000 lb (907 kg)
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling  Sheets 9 ft x 6 ft (2.7 m x 1.8 m) up to 2000 lb (907 kg) Max Sheet Size Lifting & Handling  Sheets 9 ft x 6 ft (2.7 m x 1.8 m) up to 2000 lb (907 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

M150M with L200M8-110-4/44 VPF-57-AC with L200M8-110-4/44
m150m-l200m8-110-4^44
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 2000 lb (907 kg) Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 2000 lb (907 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

M150M with L200M8-150-4/44 VPF-57HD-AC with L200M8-150-4/44
ANVER Eight Pad Self-Powered Mechanical Vacuum Lifter
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 16 ft x 8 ft (4.9 m x 2.4 m) up to 2000 lb (907 kg) Max Sheet Size Lifting & Handling Sheets 16 ft x 8 ft (4.9 m x 2.4 m) up to 2000 lb (907 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-400
Click to Request More Information Click to Request More Information

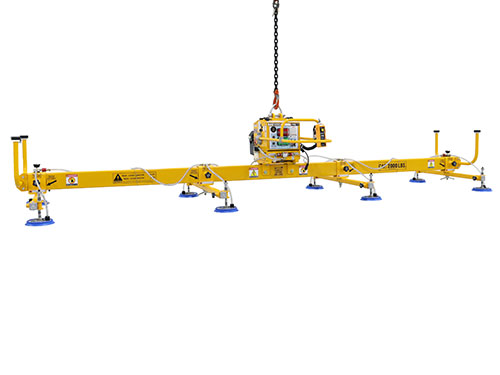

M150M with L200M8-190-4/44 VPE1 with L200M8-190-4/44
ANVER Eight Pad Self-Powered Mechanical Vacuum Lifter
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 20 ft x 8 ft (6.2 m x 2.4 m) up to 2000 lb (907 kg) Max Sheet Size Lifting & Handling Sheets 20 ft x 8 ft (6.2 m x 2.4 m) up to 2000 lb (907 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

M250M with L200M8-231-4/44 VPE1 with L200M8-231-4/44

Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 25 ft x 8 ft (7.7 m x 2.4 m) up to 2000 lb (907 kg) Max Sheet Size Lifting & Handling Sheets 25 ft x 8 ft (7.7 m x 2.4 m) up to 2000 lb (907 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information



Standard Rubber Seal Lifting Frames Specifications


76500032-033
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Spreader
Beam
Length
C
Hardware
Mounting
Centers
D
Pad
Diameter
Outer Pad Distances F
Minimum
Inner
Pad
Distance
G
Crossarm
Length
Outer Pad Distances Seal
Number
E1
Maximum
E2
Minimum
H1
Maximum
H2
Minimum
H3
Minimum

L200M8-86-4/44 2000 lb
907 kg
250 lb
113 kg
10 in.
254 mm
88 in.
2235 mm
9 in.
229 mm
9.25 in.
235 mm
93 in.
2362 mm
53 in.
1346 mm
34 in.
864 mm
44 in.
1118 mm
50 in.
1270 mm
23 in.
584 mm
N/A SSR-90

L200M8-110-4/44 2000 lb
907 kg
250 lb
113 kg
10 in.
254 mm
112 in.
2845 mm
9 in.
229 mm
9.25 in.
235 mm
117 in.
2972 mm
53 in.
1346 mm
34 in.
864 mm
44 in.
1118 mm
50 in.
1270 mm
23 in.
584 mm
N/A SSR-90



76500108-111-WEB
 76500108-111

Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Spreader
Beam
Length
C
Pad
Diameter

Outer Pad Distances   E
Minimum Inner
Pad
Distance
F
Crossarm
Length
Outer Pad Distances Hardware Mounting Centers Seal
Number
D1
Maximum
D2
Minimum
G1
Maximum
G2
Minimum
H1
H2 H3

L200M8-150-4/44 2000 lb
907 kg
330 lb
150 kg
12 in.
305 mm
150 in.
3810 mm
9.25 in.
235 mm
158 in.
4013 mm
53 in.
1346 mm
34 in.
864 mm
44 in.
1118 mm
50 in.
1270 mm
23 in.
584 mm
9 in.
229 mm
12 in.
305 mm
N/A SSR-90

L200M8-190-4/44 2000 lb
907 kg
370 lb
168 kg
12 in.
305 mm
190 in.
4826 mm
9.25 in.
235 mm
198 in.
5029 mm
53 in.
1346 mm
34 in.
864 mm
44 in.
1118 mm
50 in.
1270 mm
23 in.
584 mm
9 in.
229 mm
12 in.
305 mm
N/A SSR-90



 L200M8-231-4/44 2000 lb
907 kg
580 lb
263 kg
12 in.
305 mm
231 in.
5867 mm
9.25 in.
235 mm
239 in.
6071 mm
64 in.
1626 mm
44 in.
1118 mm
44 in.
1118 mm
50 in.
1270 mm
23 in.
584 mm
9 in.
229 mm
12 in.
305 mm
22.38 in.
568 mm
SSR-90



Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.


76500490-491
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Spreader
Beam
Length
C
Pad
Diameter
Outer Pad Distances E
Minimum
Inner
Pad
Dimensioons
F
Crossarm
Length
Outer Pad Distances Hardware Mounting Centers Seal
Number
D1
Maximum
D2
Minimum
G1
Maximum
G2
Minimum
H1

L200M8-86-4/44FP 2000 lb
907 kg
315 lb
143 kg
11.5 in.
292 mm
88 in.
2235 mm
12 in.
305 mm
94 in.
2388 mm
60 in.
1524 mm
36 in.
914 mm
44 in.
1118 mm
52 in.
1321 mm
26 in.
660 mm
9 in.
229 mm
FR128

L200M8-110-4/44FP 2000 lb
907 kg
340 lb
154 kg
11.5 in.
292 mm
112 in.
2845 mm
12 in.
305 mm
118 in.
2997 mm
60 in.
1524 mm
36 in.
914 mm
44 in.
1118 mm
52 in.
1321 mm
26 in.
660 mm
9 in.
229 mm
FR128



Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ and ‘H’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ and ‘H’ Minimum Pad Distances position to handle smaller plate sizes.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.

Center vacuum pads used for short and narrow plates. Outer vacuum pads provided with shut-off valves.
