Two Pad Vacuum Lifter Lifting Frames
For Standard Two Pad Lifters – Capacity up to 2200 lb (998 kg)

The L200M2-48, -61, and -86 two-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 2200 lb (998 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames

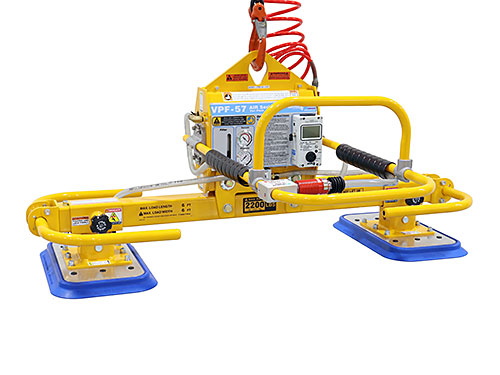

M150M with L220M2-48 VPF-57-AC with L220M2-48
Description Self-Powered, Mechanical Vacuum Generator with Two Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Two Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 6 ft x 6 ft (1.8 m x 1.8 m) up to 2200 lb (998 kg) Max Sheet Size Lifting & Handling Sheets 6 ft x 6 ft (1.8 m x 1.8 m) up to 2200 lb (998 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

M150M with L220M2-61 VPF-57-AC with L220M2-61
Description Self-Powered, Mechanical Vacuum Generator with Two Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Two Pad Lifting Frame
Max Sheet Size Lifting & Handling Steel Sheet, 8 ft x 6 ft (2.4 m x 1.8 m) up to 2200 lb (998 kg) Max Sheet Size Lifting & Handling Sheets 8 ft x 6 ft (2.4 m x 1.8 m) up to 2200 lb (998 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

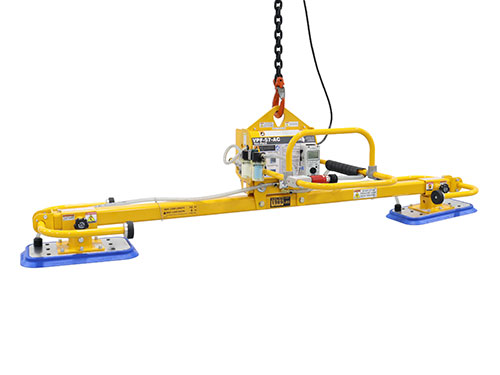

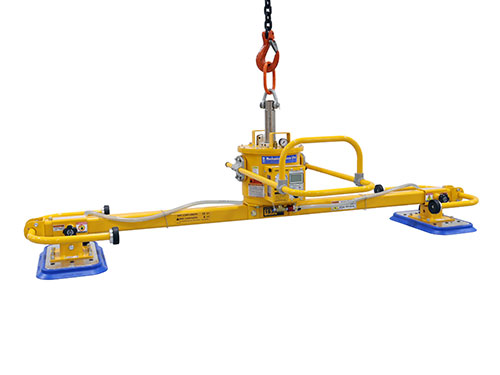

M150M with L220M2-86 VPF-57-AC with L220M2-86
Description Self-Powered, Mechanical Vacuum Generator with Two Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Two Pad Lifting Frame
Max Sheet Size Lifting & Handling Metal Sheet 12 ft x 6 ft (3.7 m x 1.8 m) up to 2200 lb (998 kg) Max Sheet Size Lifting & Handling Metal Sheet 12 ft x 6 ft (3.7 m x 1.8 m) up to 2200 lb (998 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information




Standard Rubber Seal Lifting Frames Specifications


76500277-279
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Beam
Length
C
Hardware
Mounting
Centers
Seal
Number
D
Pad Dimensions
E
Pad Distances
Maximum Minimum Maximum Minimum

L220M2-48 2200 lb
998 kg
94 lb
43 kg
6.7 in.
170 mm
50 in.
1270 mm
9 in.
229 mm
SSR-1220 12.1 in.
307 mm
20.5 in.
521 mm
53 in.
1346 mm
33 in.
838 mm

L220M2-61 2200 lb
998 kg
114 lb
52 kg
6.7 in.
170 mm
63 in.
1600 mm
9 in.
229 mm
SSR-1220 12.1 in.
307 mm
20.5 in.
521 mm
66 in.
1676 mm
33 in.
838 mm

L220M2-86 2200 lb
998 kg
166 lb
75 kg
6.7 in.
170 mm
88 in.
2235 mm
9 in.
229 mm
SSR-1220 12.1 in.
307 mm
20.5 in.
521 mm
91 in.
2311 mm
33 in.
838 mm

* Unit weight does not include optional equipment.

Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ Minimum Pad Distances position to handle smaller plate sizes
