Three Pad Vacuum Lifter Lifting Frames
For Standard Three Pad Lifters – Capacity up to 2200 lb (998 kg)

The L220M3-61, -86, and -110 three-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 2200 lb (998 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames
M150M with L220M3-61 VPF-57-AC with L220M3-61
 vpf-57-ac-l220m3-61
Description Self-Powered, Mechanical Vacuum Generator with Three Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Three Pad Lifting Frame
Max Sheet Size Lifting & Handling Steel Sheets 7 ft x 6 ft (2.1 m x 1.5 m) up to 2200 lb (998 kg) Max Sheet Size Lifting & Handling Sheets 7 ft x 6 ft (2.1 m x 1.8 m) up to 2200 lb (998 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

M150M with L220M3-86 VPF-57-AIR with L220M3-86
Description Self-Powered, Mechanical Vacuum Generator with Three Pad Lifting Frame Description:  Air Powered Vacuum Generator with Three Pad Lifting Frame
Max Sheet Size Lifting & Handling Steel Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 2200 lb (998 kg) Max Sheet Size Lifting & Handling Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 2200 lb (998 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

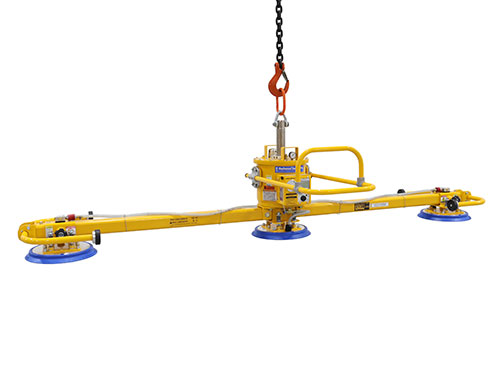

M150M with L220M3-110 VPF-57-AC with L220M3-110
m150m-l220m3-110 vpf-57-ac-l220m3-110
Description Self-Powered, Mechanical Vacuum Generator with Three Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Three Pad Lifting Frame
Max Sheet Size Lifting & Handling Steel Sheets 12 ft x 6 ft (3.6 m x 1.8 m) up to 2200 lb (998 kg) Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.6 m x 1.8 m) up to 2200 lb (998 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information




Standard Rubber Seal Lifting Frames Specifications


76500534
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Pad
Diameter
B
Lifting
Frame
Headroom
C
Beam
Length
D Pad Distances E
Hardware
Mounting
Centers
Seal
Number
Maximum Minimum

L220M3-61 2200 lb
998 kg
152 lb
69 kg
15 in.
381 mm
5.5 in.
140 mm
63 in.
1600 mm
69 in.
1753 mm
45 in.
1143 mm
9 in.
229 mm
SSR-146

L220M3-86 2200 lb
998 kg
183 lb
83 kg
15 in.
381 mm
5.5 in.
140 mm
88 in.
2235 mm
94 in.
2388 mm
45 in.
1143 mm
9 in.
229 mm
SSR-146

L220M3-110 2200 lb
998 kg
230 lb
104 kg
15 in.
381 mm
5.5 in.
140 mm
112 in.
2845 mm
118 in.
2997 mm
45 in.
1143 mm
9 in.
229 mm
SSR-146



Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.


76500583
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A1
Pad
Size
A2
Pad
Size
B
Lifting
Frame
Headroom
C
Beam
Length
D Pad Distances E
Hardware
Mounting
Centers
Seal
Number
Maximum Minimum

L220M3-61FP 2200 lb
998 kg
125 lb
57 kg
10 in.
254 mm
19 in.
483 mm
5.6 in.
142 mm
63 in.
1600 mm
63 in.
1600 mm
31 in.
787 mm
9 in.
229 mm
FR100190

L220M3-86FP 2200 lb
998 kg
145 lb
66 kg
10 in.
254 mm
19 in.
483 mm
5.6 in.
142 mm
88 in.
2235 mm
88 in.
2235 mm
31 in.
787 mm
9 in.
229 mm
FR100190

L220M3-110FP 2200 lb
998 kg
200 lb
91 kg
10 in.
254 mm
19 in.
483 mm
5.6 in.
142 mm
112 in.
2845 mm
112 in.
2845 mm
31 in.
787 mm
9 in.
229 mm
FR100190







Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ Minimum Pad Distances position to handle smaller plate sizes.

Center vacuum pad used for short and narrow plates. Outer vacuum pads provided with shut-off valves.





Click Here to See More Details of Different Suction Cup and Vacuum Cup Materials
