Six Pad Vacuum Lifter Lifting Frames
For Standard Six Pad Lifters with Adjustable Crossarms – Capacity up to 3000 lb (1361 kg)

L300M6-86-3/44, -110-3/44, and -150-3/44 six-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a maximum capacity of 3000 lb (1361 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames

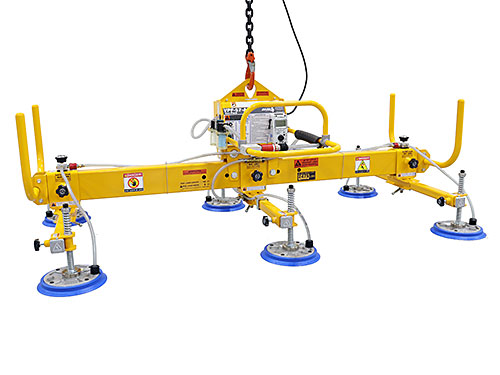

M250M with L300M6-86-3/44 VPF-57HD-AC with L300M6-86-3/44
m250m-l300m6-86-3^44 ANVER Six Pad Electric Powered Vacuum Lifter for Lifting Steel Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 3000 lb (1361 kg)
Description Self-Powered, Mechanical Vacuum Generator with Six Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Six Pad Lifting Frame
Max Sheet Size Lifting & Handling  Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 3000 lb (1361 kg) Max Sheet Size Lifting & Handling  Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 3000 lb (1361 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-150
Click to Request More Information

Click to Request More Information

M250M with L300M6-110-3/44 VPF-57HD-AC with L300M6-110-3/44
ANVER Six Pad Self-Powered Mechanical Vacuum Lifter ANVER Six Pad Electric Powered Vacuum Lifter for Lifting Steel Sheets 12 ft x 6 ft (3.6 m x 1.8 m) up to 3000 lb (1361 kg)
Description Self-Powered, Mechanical Vacuum Generator with Six Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Six Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 3000 lb (1361 kg) Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 3000 lb (1361 kg)
    Options Shown Parking Stands: PS-150
Click to Request More Information

Click to Request More Information

M250M with L300M6-150-3/44 VPF-57-AIR with L300M6-150-3/44
ANVER Six Pad Self-Powered Mechanical Vacuum Lifter
Description Self-Powered, Mechanical Vacuum Generator with Six Pad Lifting Frame Description:  Air Powered Vacuum Generator with Six Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 16 ft x 8 ft (4.9 m x 2.4 m) up to 3000 lb (1361 kg) Max Sheet Size Lifting & Handling Sheets 16 ft x 8 ft (4.9 m x 2.4 m) up to 3000 lb (1361 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information



Standard Rubber Seal Lifting Frames Specifications


76500102
Lifting
Frame

Number
Rated
Load
Capacity
lb
(kg)
Unit
Weight
lb
(kg)
A
Lifting
Frame
Headroom
in.
(mm)
B
Spreader
Beam
Length
in.
(mm)
C
Crossarm
Length
in.
(mm)
D
Pad
Diameter
in.
(mm)
E
Pad Distances
in.
(mm)
F
Outer
Pad Distance
in.
(mm)
Hardware
Mounting Centers
in.
(mm)
Seal
Number
Max. Min. Max. Min. G1 G2 G3

L300M6-86-3/44 3000
(1361)
240
(109)
13
(330)
86
(2184)
44
(1118)
12.6
(320)
96
(2438)
47
(1194)
53
(1346)
26
(660)
9
(229)
12
(305)
23.38
(594)
SSR-126

L300M6-110-3/44 3000
(1361)
264
(120)
13
(330)
110
(2794)
44
(1118)
12.6
(320)
120
(3048)
47
(1194)
53
(1346)
26
(660)
9
(229)
12
(305)
23.38
(594)
SSR-126

L300M6-150-3/44 3000
(1361)
368
(167)
13
(330)
150
(3810)
44
(1118)
12.6
(320)
160
(4064)
47
(1194)
53
(1346)
26
(660)
9
(229)
12
(305)
(23.38
(594)
SSR-126



Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.

76500577-579
Lifting
Frame

Number
Rated
Load
Capacity
lb
(kg)
Unit
Weight
lb
(kg)
A
Lifting
Frame
Headroom
in.
(mm)
B
Spreader
Beam
Length
in.
(mm)
C
Crossarm
Length
in.
(mm)
D
Pad
Dimension
in.
(mm)
E
Pad Distances
in.
(mm)
F
Outer
Pad Distance
in.
(mm)
Hardware
Mounting Centers
in.
(mm)
Seal
Number
Max. Min. Max. Min. G1 G2 G3

L300M6-86-3/44FP 3000
(1361)
295
(134)
14
(356)
86
(2184)
44
(1118)
15
(381)
96
(2438)
46
(1168)
55
(1397)
31
(787)
9
(229)
12
(305)
22.38
(594)
FP150

L300M6-110-3/44FP 3000
(1361)
315
(143)
14
(356)
110
(2794)
44
(1118)
15
(381)
120
(3048)
46
(1168)
55
(1397)
31
(787)
9
(229)
12
(305)
22.38
(594)
FP150

L300M6-150-3/44FP 3000
(1361)
410
(186)
14
(356)
150
(3810)
44
(1118)
15
(381)
160
(4064)
46
(1168)
55
(1397)
31
(787)
9
(229)
12
(305)
22.38
(594)
FP150



Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ and ‘G’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ and ‘G’ Minimum Pad Distances position to handle smaller plate sizes.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.

Center vacuum pads used for short and narrow plates. Outer vacuum pads provided with shut-off valves.
