Eight Pad Vacuum Lifter Lifting Frames
For Standard Eight Pad Lifters with Adjustable Crossarms – Capacity up to 4000 lb (1814 kg)

L400M8-110-4/44, -150-4/44, -190-4/44, and -231-4/44 eight-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a maximum capacity of 4000 lb (1814 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

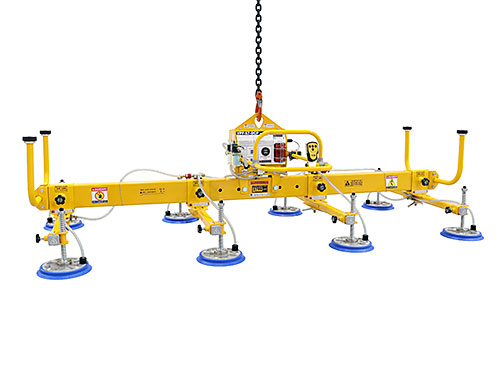

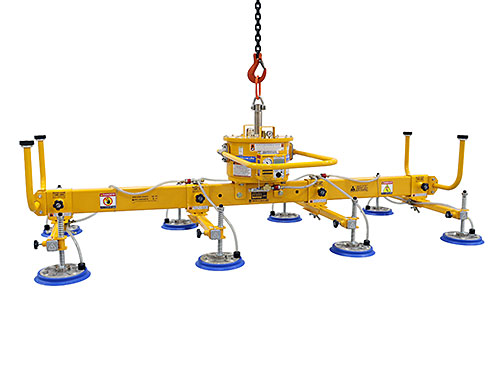

M250M with L400M8-110-4/44 VPF–57/30HD-AIR-L with L400M8-110-4/44
ANVER Eight Pad Self-Powered Mechanical Vacuum Lifter Model# M400M8-110-4/44 ANVER Eight Pad Electric Powered Vacuum Lifter
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Air Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 4000 lb (1814 kg) Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 4000 lb (1814 kg)
Options Shown Parking Stands: PS-250 Options Shown Parking Stands: PS-150-3X6
Click to Request More Information Click to Request More Information

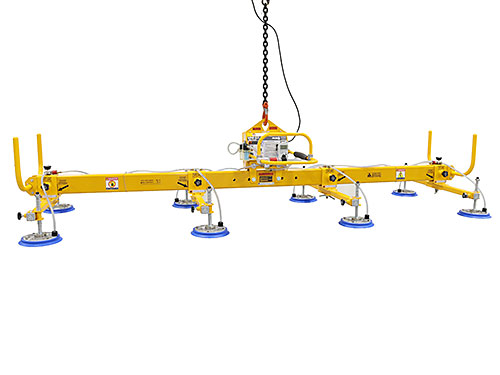

M250M with L400M8-150-4/44 VPF-57HD-AC with L400M8-150-4/44
ANVER Eight Pad Self-Powered Mechanical Vacuum Lifter ANVER Eight Pad Electric Powered Vacuum Lifter for Lifting Steel Plate 20 ft x 8 ft (6.1 m x 2.4 m) up to 4000 lb (1814 kg)
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 16 ft x 8 ft (4.9 m x 2.4 m) up to 4000 lb (1814 kg) Max Sheet Size Lifting & Handling Sheets 16 ft x 8 ft (4.9 m x 2.4 m) up to 4000 lb (1814 kg)
Options Shown Parking Stands: PS-250 Options Shown Parking Stands: PS-250
Click to Request More Information Click to Request More Information

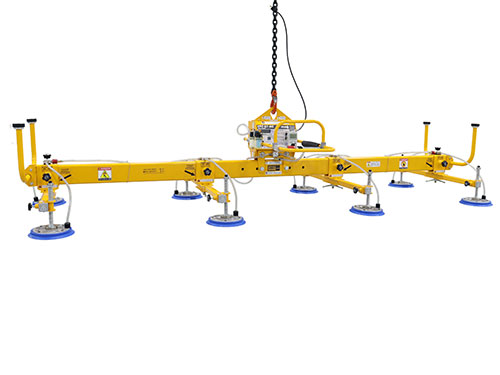

M250M with L400M8-190-4/44 VPE1 with L400M8-190-4/44
M250M_L400M8-190-4_44 ANVER Eight Pad Electric Powered Vacuum Lifter for Lifting Steel Plate 20 ft x 8 ft (6.1 m x 2.4 m) up to 4000 lb (1814 kg)
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 20 ft x 8 ft (6.2 m x 2.4 m) up to 4000 lb (1814 kg) Max Sheet Size Lifting & Handling Sheets 20 ft x 8 ft (6.2 m x 2.4 m) up to 4000 lb (1814 kg)
Options Shown Parking Stands: PS-250
Click to Request More Information Click to Request More Information

M250M with L400M8-231-4/44 VPE3-H with L400M8-231-4/44
ANVER Eight Pad Self-Powered Mechanical Vacuum Lifter for Lifting & Handling Steel Sheets 25  ft x 8 ft (7.6 m x 2.4 m) up to 4000 lb (1814 kg) ANVER Eight Pad Electric Powered Vacuum Lifter for Lifting & Handling Steel Sheet and Plate 25 ft x 8 ft (7.6 m x 2.4 m) up to 4000 lb (1814 kg)
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 25 ft x 8 ft (7.7 m x 2.4 m) up to 4000 lb (1814 kg) Max Sheet Size Lifting & Handling Sheets 25 ft x 8 ft (7.7 m x 2.4 m) up to 4000 lb (1814 kg)
Options Shown Parking Stands: PS-250
Click to Request More Information Click to Request More Information


Standard Rubber Seal Lifting Frames Specifications

Request For Quote
Lifting Frame NumberL400M8-110-4/44L400M8-150-4/44L400M8-190-4/44L400M8-231-4/44
Rated Load Capacity [lbs (kg)]4000 (1814)4000 (1814)4000 (1814)4000 (1814)
Unit Weight [lbs (kg)]380 (172)540 (245)680 (308)800 (363)
A Lifting Frame Headroom [in. (mm)]13 (330)13 (330)13.5 (343)13.5 (343)
B Spreader Beam Length [in. (mm)]110 (2794)150 (3810)190 (4826)231 (5867)
C Pad Diameter [in. (mm)]12.6 (320)12.6 (320)12.6 (320)12.6 (320)
D Outer Pad Distances Maximum [in. (mm)]120 (3048)160 (4064)200 (5080)241 (6121)
D Outer Pad Distances Minimum [in. (mm)]72 (1829)72 (1829)72 (1829)72 (1829)
E Minimum Inner Pad Distance [in. (mm)]47 (1194)47 (1194)47 (1194)47 (1194)
F Crossarm Length [in. (mm)]44 (1118)44 (1118)44 (1118)44 (1118)
G Outer Pad Distances Maximum [in. (mm)]53 (1346)53 (1346)53 (1346)53 (1346)
G Outer Pad Distances Minimum [in. (mm)]29 (737)29 (737)29 (737)29 (737)
H1 Standard Hardware Mtg. Centers [in. (mm)]9 (229)9 (229)N/AN/A
H2 Inner Alternate Hardware Mtg. Centers [in. (mm)]12 (305)12 (305)12 (304)12 (304)
H3 Outer Alternate Hardware Mtg. Centers [in. (mm)]22.38 (568)22.38 (568)22.38 (568)22.38 (568)
Maximum Sheet Size [ft (M)]12 x 6 (3.7 x 1.8)16 x 8 (4.9 x 2.4)20 x 8 (6.1 x 2.4)25 x 8 (7.6 x 2.4)
Seal NumberSSR-126SSR-126SSR-126SSR-126

Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.



Request For Quote
Lifting Frame NumberL400M8-110-4/44FPL400M8-150-4/44FP
Rated Load Capacity [lbs (kg)]4000 (1814)4000 (1814)
Unit Weight [lbs (kg)]420 (191)580 (263)
A Lifting Frame Headroom [in. (mm)]13 (330)13 (330)
B Spreader Beam Length [in. (mm)]110 (2794)150 (3810)
C Pad Diameter [in. (mm)]15 (381)15 (381)
D Outer Pad Distances Maximum [in. (mm)]119 (3023)159 (4039)
D Outer Pad Distances Minimum [in. (mm)]73 (1854)73 (1854)
E Minimum Inner Pad Distance [in. (mm)]45 (1143)45 (1143)
F Crossarm Length [in. (mm)]44 (1118)44 (1118)
G Outer Pad Distances Maximum [in. (mm)]53 (1346)53 (1346)
G Outer Pad Distances Minimum [in. (mm)]29 (737)29 (737)
H1 Standard Hardware Mtg. Centers [in. (mm)]9 (229)9 (229)
H2 Inner Alternate Hardware Mtg. Centers [in. (mm)]12 (305)12 (305)
H3 Outer Alternate Hardware Mtg. Centers [in. (mm)]22.38 (568)22.38 (568)
Maximum Sheet Size [ft (M)]12 x 6 (3.7 x 1.8)16 x 8 (4.9 x 2.4)
Seal NumberFR150FR150

Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ and ‘H’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ and ‘H’ Minimum Pad Distances position to handle smaller plate sizes.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.

Center vacuum pads used for short and narrow plates. Outer vacuum pads provided with shut-off valves.
