Eight Pad Vacuum Lifter Lifting Frames
For Standard Eight Pad Lifters with Adjustable Crossarms – Capacity up to 800 lb (363 kg)

The L80M8-86-4/44 and -110-4/44 eight-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 800 lb (363 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames
M100M with L80M8-86-4/44 VPF-57-AC with L80M8-86-4/44
 m100m-l80m8-86-4^44 ANVER Eight Pad Electric Powered Vacuum Lifter for Lifting Steel Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 1200 lb (544 kg)
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling  Sheets 9 ft x 6 ft (2.8 m x 1.8 m) up to 800 lb (363 kg) Max Sheet Size Lifting & Handling  Sheets 9 ft x 6 ft (2.8 m x 1.8 m) up to 800 lb (363 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

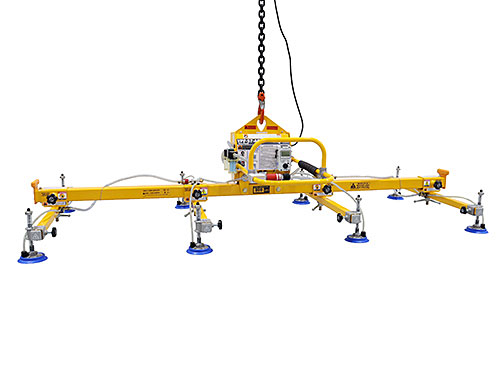

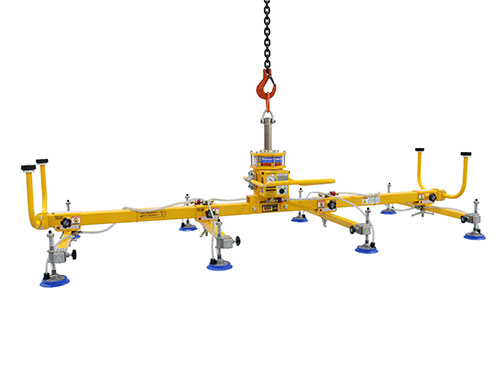

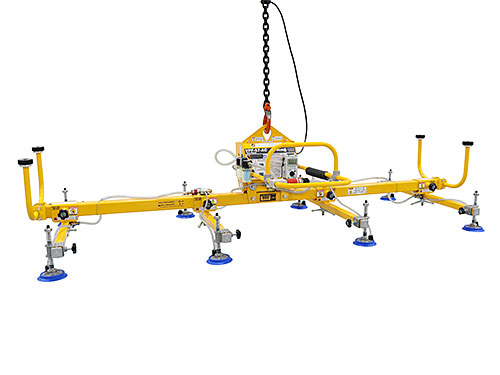

M100M with L80M8-110-4/44 VPF-57-AC with L80M8-110-4/44
m100m-l80m8-110-4^44
Description Self-Powered, Mechanical Vacuum Generator with Eight Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Eight Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 800 lb (363 kg) Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 800 lb (363 kg)
    Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information



Standard Rubber Seal Lifting Frames Specifications


76500032-033
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Spreader
Beam
Length
C
Hardware
Mounting
Centers
D
Pad
Diameter
Outer Pad Distances F
Minimum
Inner
Pad
Distance
G
Crossarm
Length
Outer Pad Distances Seal
Number
E1
Maximum
E2
Minimum
H1
Maximum
H2
Minimum

L80M8-86-4/44 800 lb
363 kg
170 lb
77 kg
10 in.
254 mm
88 in.
2235 mm
9 in.
229 mm
6.6 in.
168 mm
89 in.
2261 mm
48 in.
1219 mm
31 in.
787 mm
44 in.
1118 mm
47 in.
1194 mm
19 in.
483 mm
SSR-66

L80M8-110-4/44 800 lb
363 kg
185 lb
84 kg
10 in.
254 mm
112 in.
2845 mm
9 in.
229 mm
6.6 in.
168 mm
113 in.
2870 mm
48 in.
1219 mm
31 in.
787 mm
44 in.
1118 mm
47 in.
1194 mm
19 in.
483 mm
SSR-66



Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.


76500582
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Spreader
Beam
Length
C
Hardware
Mounting
Centers
D
Pad
Diameter
Outer Pad Distances F
Minimum
Inner
Pad
Distance
G
Crossarm
Length
Outer Pad Distances Seal
Number
E1
Maximum
E2
Minimum
H1
Maximum
H2
Minimum

L80M8-86-4/44FP 800 lb
363 kg
172 lb
78 kg
11 in.
279 mm
88 in.
2235 mm
9 in.
229 mm
7.25 in.
184 mm
90 in.
2286 mm
56 in.
1422 mm
32 in.
813 mm
44 in.
1118 mm
48 in.
1219 mm
22 in.
559 mm
FR78

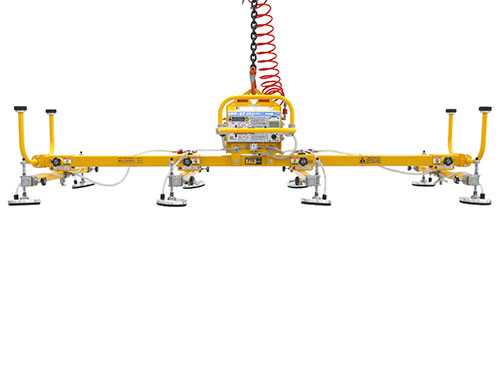

L80M8-110-4/44FP 800 lb
363 kg
190 lb
86 kg
11 in.
279 mm
112 in.
2845 mm
9 in.
229 mm
7.25 in.
184 mm
114 in.
2896 mm
56 in.
1422 mm
32 in.
813 mm
44 in.
1118 mm
48 in.
1219 mm
22 in.
559 mm
FR78



Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ and ‘H’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ and ‘H’ Minimum Pad Distances position to handle smaller plate sizes.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.

Center vacuum pads used for short and narrow plates. Outer vacuum pads provided with shut-off valves.
