Six Pad Vacuum Lifter Lifting Frames
For Standard Six Pad Lifters with Adjustable Crossarms – Capacity up to 900 lb (408 kg)

The L90M6-61-3/44, -86-3/44, and -110-3/44 adjustable crossarm lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a maximum capacity of 3000 lb (1361 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames
M100M with L90M6-61-3/44 VPF-57-AC with L90M6-61-3/44
ANVER Six Pad Electric Powered Vacuum Lifter for Lifting Non-Porous or Semi-Porous Material 8 ft x 6 ft (2.4 m x 1.8 m) weighing up to 900 lb (408 kg)
Description Self-Powered, Mechanical Vacuum Generator with Six Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Six Pad Lifting Frame
Max Sheet Size Lifting & Handling  Sheets, 8 ft x 6 ft (2.4 m x 1.8 m) up to 900 lb (408 kg) Max Sheet Size Lifting & Handling  Sheets, 8 ft x 6 ft (2.4 m x 1.8 m) up to 900 lb (408 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

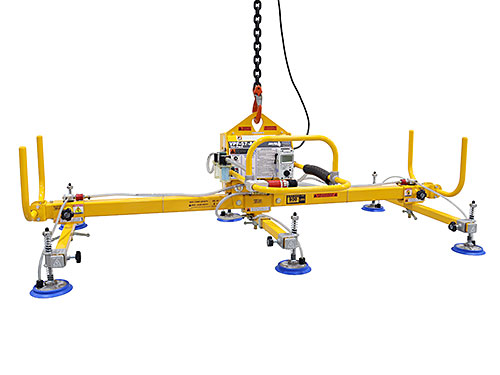

M100M with L90M6-86-3/44 VPF-57-AIR with L90M6-86-3/44
ANVER Six Pad Self-Powered Mechanical Vacuum Lifter ANVER Six Pad Electric Powered Vacuum Lifter for Handling Oiled Steel Sheets, 12 ft x 6 ft (3.7 m x 1.8 m) up to 900 lb (408 kg)
Description Self-Powered, Mechanical Vacuum Generator with Six Pad Lifting Frame Description:  Air Powered Vacuum Generator with Six Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 900 lb (408 kg) Max Sheet Size Lifting & Handling Sheets 10 ft x 6 ft (3.1 m x 1.8 m) up to 900 lb (408 kg)
Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information

M100M with L90M6-110-3/44 VPF-57-AC with L90M6-110-3/44
ANVER Six Pad Self-Powered Mechanical Vacuum Lifter for Lifting Steel Sheets VPF-57-AC_L90M6-110-3_44
Description Self-Powered, Mechanical Vacuum Generator with Six Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Six Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 900 lb (408 kg) Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 900 lb (408 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-150
Click to Request More Information Click to Request More Information



Standard Rubber Seal Lifting Frames Specifications


76500063-065
Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Spreader
Beam
Length
C
Hardware
Mounting
Centers
D
Pad
Diameter
E
Pad Distances
F
Crossarm
Length
G
Pad Distances
Seal
Number
Maximum Minimum Maximum Minimum

L90M6-61-3/44 900 lb
408 kg
118 lb
54 kg
10 in.
254 mm
63 in.
1600 mm
9 in.
229 mm
7.8 in.
198 mm
64 in.
1626 mm
32 in.
813 mm
44 in.
1118 mm
48 in.
1219 mm
20 in.
508 mm
SSR-76

L90M6-86-3/44 900 lb
408 kg
132 lb
60 kg
10 in.
254 mm
88 in.
2235 mm
9 in.
229 mm
7.8 in.
198 mm
89 in.
2261 mm
32 in.
813 mm
44 in.
1118 mm
48 in.
1219 mm
20 in.
508 mm
SSR-76

L90M6-110-3/44 900 lb
408 kg
145 lb
66 kg
10 in.
254 mm
112 in.
2845 mm
9 in.
229 mm
7.8 in.
198 mm
113 in.
2870 mm
32 in.
813 mm
44 in.
1118 mm
48 in.
1219 mm
20 in.
508 mm
SSR-76



Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.


76500102

Lifting
Frame

Number
Rated
Load
Capacity
Unit
Weight
A
Lifting
Frame
Headroom
B
Spreader
Beam
Length
C
Hardware
Mounting
Centers
D
Pad
Diameter
E
Pad Distances
F
Crossarm
Length
G
Pad Distances
Seal
Number
Maximum Minimum Maximum Minimum

L90M6-61-3/44FP 900 lb
408 kg
120 lb
54 kg
11 in.
279 mm
63 in.
1600 mm
9 in.
229 mm
8.25 in.
210 mm
65 in.
1651 mm
33 in.
838 mm
44 in.
1118 mm
49 in.
1245 mm
21 in.
533 mm
FR88

L90M6-86-3/44FP 900 lb
408 kg
134 lb
61 kg
11 in.
279 mm
88 in.
2235 mm
9 in.
229 mm
8.25 in.
210 mm
90 in.
2286 mm
33 in.
838 mm
44 in.
1118 mm
49 in.
1245 mm
21 in.
533 mm
FR88

L90M6-110-3/44FP 900 lb
408 kg
147 lb
67 kg
11 in.
279 mm
112 in.
2845 mm
9 in.
229 mm
8.25 in.
210 mm
114 in.
2896 mm
33 in.
838 mm
44 in.
1118 mm
49 in.
1245 mm
21 in.
533 mm
FR88



Various plate sizes can be handled
by adjusting the vacuum pad
positions on the beam

Vacuum pads in the ‘E’ and ‘G’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved inward to ‘E’ and ‘G’ Minimum Pad Distances position to handle smaller plate sizes.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.

Center vacuum pads used for short and narrow plates. Outer vacuum pads provided with shut-off valves.





Click Here to See More Details of Different Suction Cup and Vacuum Cup Materials
