ANVER’S Standard Vacuum Lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s Standard Horizontal Vacuum Lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER Vacuum Lifters comply fully with and meet the standards of US ANSI ASME Standard B30.20 for below-the-hook lifting devices, as well as complying with OSHA and most European requirements.

The L150M6-86-3/44 and -110-3/44 six-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 1500 lb (680 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs. Available with Foam Pads for semi-porous / textured applications like wood, stone and diamond plate. Please note that Foam pads are not available for mechanical vacuum generators.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

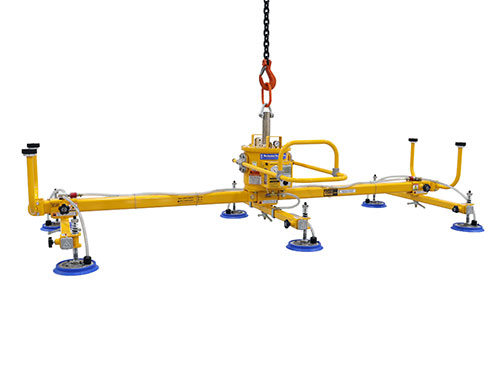

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.

Standard Rubber Seal Lifting Frames Specifications

Compatible Vacuum Generators
Mechanical Air, Electric or Battery* Electric Battery*
M150M_190x163 VPF-57-AIR_190x129 VPE1-GEN2_190x275 BAE1-GEN2_190x213
M150M-Series VPF-57-Series VPE1-GEN3-Series BAE1-GEN3-Series
Request For Quote
Lifting Frame NumberL150M6-86-3/44L150M6-110-3/44
Rated Load Capacity [lbs (kg)]1500 (680)1500 (680)
Unit Weight [lbs (kg)]178 (81)240 (109)
A Lifting Frame Headroom [in. (mm)]10 (254)10 (254)
B Spreader Beam Length [in. (mm)]88 (2235)112 (2845)
C Hardware Mounting Centers [in. (mm)]9 (229)9 (229)
D Pad Diameter [in. (mm)]9.25 (235)9.25 (235)
E Pad Distances Maximum [in. (mm)]89 (2261)113 (2870)
E Pad Distances Minimum [in. (mm)]34 (864)34 (864)
F Crossarm Length [in. (mm)]44 (1118)44 (1118)
G Pad Distances Maximum [in. (mm)]48 (1219)48 (1219)
G Pad Distances Minimum [in. (mm)]22 (559)22 (559)
Maximum Sheet Size [ft (M)]10 x 6 (3.0 x 1.8)12 x 6 (3.7 x 1.8)
Seal NumberSSR-92SSR-92
Optional Parking StandsPS-150-3X3PS-150-3X3

Compatible Vacuum Generators
Mechanical Air, Electric or Battery* Electric Battery*
M150M_190x163 VPF-57-AIR_190x129 VPE1-GEN2_190x275 BAE1-GEN2_190x213
M150M-Series VPF-57-Series VPE1-GEN3-Series BAE1-GEN3-Series
Request For Quote
Lifting Frame NumberL150M6-150-3/44
Rated Load Capacity [lbs (kg)]1500 (680)
Unit Weight [lbs (kg)]290 (132)
A Lifting Frame Headroom [in. (mm)]12 (305)
B Spreader Beam Length [in. (mm)]150 (3810)
C Crossarm Length [in. (mm)]44 (1118)
D Pad Diameter [in. (mm)]9.25 (235)
E Outer Pad Distances Maximum [in. (mm)]155 (3937)
E Outer Pad Distances Minimum [in. (mm)]43 1092)
F Outer Pad Distances Maximum [in. (mm)]48 (1219)
F Outer Pad Distances Minimum [in. (mm)]22 (559)
G1 Standard Hardware Mtg. Centers [in. (mm)]9 (229)
G2 Inner Alternate Hardware Mtg. Centers [in. (mm)]12 (305)
G3 Outer Alternate Hardware Mtg. Centers [in. (mm)]22.38 (568)
Maximum Sheet Size [ft (M)]16 x 8 (4.9 x 2.4)
Seal NumberSSR-92
Optional Parking StandsPS-150-3X6


Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.

Compatible Vacuum Generators
Air, Electric or Battery* Electric Battery*
VPF-57-AIR_190x129 VPE1-GEN2_190x275 BAE1-GEN2_190x213
VPF-57-Series VPE1-GEN3-Series BAE1-GEN3-Series
Request For Quote
Lifting Frame NumberL150M6-86-3/44FPL150M6-110-3/44FP
Rated Load Capacity [lbs (kg)]1500 (680)1500 (680)
Unit Weight [lbs (kg)]270 (122)300 (136)
A Lifting Frame Headroom [in. (mm)]11.5 (292)11.5 (292)
B Spreader Beam Length [in. (mm)]88 (2235)112 (2845)
C Hardware Mounting Centers [in. (mm)]9 (229)9 (229)
D Pad Diameter [in. (mm)]12 (305)12 (305)
E Pad Distances Maximum [in. (mm)]94 (2388)118 (2997)
E Pad Distances Minimum [in. (mm)]46 (1168)46 (1168)
F Crossarm Length [in. (mm)]44 (1118)44 (1118)
G Pad Distances Maximum [in. (mm)]52 (1321)52 (1321)
G Pad Distances Minimum [in. (mm)]26 (660)26 (660)
Maximum Sheet Size [ft (M)]10 x 6 (3.0 x 1.8)12 x 6 (3.7 x 1.8)
Seal NumberFR128FR128
Optional Parking StandsPS-150-3X3PS-150-3X3


*Battery powered vacuum generators are only recommended when handling non-porous loads.

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

Crossarms and vacuum pads in maximum position to handle maximum plate size.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.

Vacuum pads and crossarms fully adjustable to handle short and narrow plates.

Inner crossarms and vacuum pads (1/3 capacity) for use with smaller plates. Outer crossarms provided with shut-off valves.
