Standard Modular Vacuum Lifter Generators
Self-Contained Self-Powered, Mechanical, Air, Electric, and Battery Powered Vacuum Stations

Light Weight, Light Duty Vacuum Generators
Generator
Type
Max. Load
Capacity
Key
Features
Pad
Attachments
Installation
Setup

LBA Bail
Assemblies for
Remote Vac-Packs
  • Up to  2000 lb (907 kg)
    for 3″ sq. beams
  • Light Weight, Low Headroom, Ruggedly Built

  • Front Gauges and Ergonomic Handlebar

  • Slide Control Valve with Safety Lock

  • Vacuum Check Valve and Vacuum Leakage Sensing System Depending on Vac-Pack Set-Up


Pad Attachments

Requires
Remote Vac-Pack
(Contact Factory)

VPFL4 Air Series Vacuum Pumps and Vacuum Stations
VPFL4-20 AIR Compact
Air Powered
  • Compact Frame
    Up to  2200 lb (998 kg)
    for 3″ sq. beams



  • Light Weight, Low Headroom, Ruggedly Built

  • Air Powered Vacuum Generator

  • Front Mounted Gauges

  • Ergonomic Front Handlebar

  • Slide Control Valve with Safety Lock

  • Vacuum Check Valve

  • Takes Standard Dry, Clean Shop Air

  • Vacuum Leakage Sensing System


Pad Attachments
VPFL4 Air Series Vacuum Pumps and Vacuum Stations
VPFL4 AIR Tall
Air Powered
  • Tall Frame
    Up to  2200 lb (998 kg)
    for 3″ sq. beams

VPFL4 Air Series Vacuum Pumps and Vacuum Stations
VPFL4 AIR Low
Air Powered
  • Low Headroom Frame
    Up to  2200 lb (998 kg)
    for 3″ sq. beams

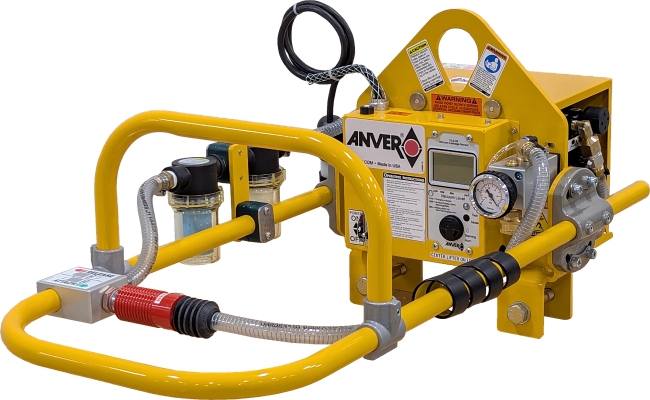

VPFL4 AC Series
Electric Powered
  • Tall (Standard) Frame
    Up to  2200 lb (998 kg)
    for 3″ sq. beams

  • Light Weight, Low Headroom, Ruggedly Built

  • Electric Powered Vacuum Generator

  • Front Mounted Gauges

  • Ergonomic Front Handlebar

  • Slide Control Valve with Safety Lock

  • Vacuum Check Valve

  • Vacuum Leakage Sensing System


Pad Attachments



Powered Vacuum Generators

Generator
Type
Max. Load
Capacity
Key
Features
Pad
Attachments
Installation
Setup
VPF-57-AIR Series Air Powered Vacuum Generators
VPF-57-AIR Series
Air Powered
  • Standard Frame
    Up to  2,200 lb (998 kg)
    for 3″ sq. beams

  • Heavy Duty Frame
    Up to  4,400 lb (1,996 kg)
    for 3″ x 6″ beams

  • Air Powered Vacuum Generator

  • Front Mounted Gauges

  • Ergonomic Front Handlebar

  • Slide Control Valve with Safety Lock

  • Vacuum Check Valve and Reservoir

  • Takes Standard Dry, Clean Shop Air

  • Vacuum Leakage Sensing System

  • Energy air saver available on some models, consumption of compressed air is minimized


Pad Attachments
VPF-57-AC Series Electric Powered Vacuum Generators
VPF-57-AC Series
Electric Powered
  • Standard Frame
    Up to  2,200 lb (998 kg)
    for 3″ sq. beams

  • Heavy Duty Frame
    Up to  4,400 lb (1,996 kg)
    for 3″ x 6″ beams

  • Electric Powered Vacuum Generator

  • Front Mounted Controls and Gauges

  • Ergonomic Front Handlebar

  • Slide Control Valve with Safety Lock

  • Vacuum Check Valve and Reservoir

  • Twist-lock Power Cord Plug and Receptacle

  • Vacuum Leakage Sensing System

  • Available in:
       115V/60Hz/1ph/6amps
       220-240V/50Hz/1ph/3amps


Pad Attachments
VPF-57-DC Series Battery Powered Vacuum Generators
VPF-57-DCP Series
Battery Powered
  • Standard Frame
    Up to  2,200 lb (998 kg)
    for 3″ sq. beams

  • Heavy Duty Frame
    Up to  4,400 lb (1,996 kg)
    for 3″ x 6″ beams

  • Battery Powered Vacuum Generator

  • Front Mounted Controls and Gauges

  • Indicator Lights

  • Ergonomic Front Handlebar

  • Attach and Release Controls

  • Vacuum Check Valve and Reservoir

  • Automatic Vacuum Control for Vacuum Pump

  • Integrated Battery Charger (GC-CHARGE-15)

  • Vacuum Leakage Sensing System


Pad Attachments
Generator
Type
Max. Load
Capacity
Key
Features
Pad
Attachments
Installation
Setup
VPE1-GEN2
VPE1-GEN2 Series
Electric Powered
  • Standard Duty Frame
    Up to 2200 lb (1000 kg)

  • Heavy-Duty Frames
    Up to 4600 lb (2090 kg)



  • Vacuum Control Module

  • Load Sensitive Lifting Bail with Safety Lock-Out
  • Attach/Release Pendant Controls with Safety Lock-Out
  • Front Control Panel and Gauges

  • Indicator Lights

  • Vacuum Retention

  • Thermal Overload Protection

  • Ergonomic Adjustable Front Handlebar

  • Twist-Lock Power Cord Connectors

  • Audible Vacuum Leakage Warning System


Pad Attachments
VPE3 Series Electric Powered Vacuum Generators
VPE3 Series
Electric Powered
  • Standard Frame
    Up to 6900 lb (3130 kg)

  • Heavy-Duty Frame
    Up to 8000 lb (3629 kg)



  • VacGuard Vacuum Control System

  • Front Control Panel and Gauges

  • Indicator Lights

  • Vacuum Retention

  • Thermal Overload Protection

  • Ergonomic Adjustable Front Handlebar

  • Twist-Lock Power Cord Connectors

  • Audible Vacuum Leakage Warning System


Pad Attachments
bae1-gen2_thumb
BAE1-GEN2 Series
Battery Powered

  • Standard Duty Frame
    Up to 2200 lb (1000 kg)

  • Heavy-Duty Frames
    Up to 4600 lb (2090 kg)

  • Vacuum Control Module

  • Load Sensitive Lifting Bail with Safety Lock-Out
  • Attach/Release Pendant Controls with Safety Lock-Out
  • Front Control Panel and Gauges

  • Indicator Lights

  • Vacuum Retention

  • Thermal Overload Protection

  • Ergonomic Adjustable Front Handlebar

  • Twist-Lock Power Cord Connectors

  • Audible Vacuum Leakage Warning System

  • Intergrated Battery Charger
  • Removable Battery Case Cover
  • Battery Cable Plugs
  • Optional Heavy Duty Rechargeable Battery

Pad Attachments



Mechanical Self-Powered Vacuum Generators

Generator
Type
Max. Load
Capacity
Key
Features
Pad
Attachments
Installation
Setup

M83M Series Self Powered Mechanical Vacuum Generators
M100M Series

  • M100M Series
    Up to 1100 lb (499 kg)

  • Instant attach and release is provided via the hoist up and down movement

  • Simple to operate. One person can control the entire operation

  • Easy to maintain and keep operating in heavy production environments

  • Able to handle a variety of sheet sizes

  • Extremely safe. Load cannot be released until it is set down on a surface

  • Capable of 100% duty cycle, 24 hour a day operation


Pad Attachments
M83M Series Self Powered Mechanical Vacuum Generators
M150M Series
  • M150M Series
    Up to 2200 lb (998 kg)

M83M Series Self Powered Mechanical Vacuum Generators
M250M Series
  • M250M Series
    Up to 4400 lb (1996 kg)

M83M Series Self Powered Mechanical Vacuum Generators
M600M Series and Above
  • M600M Series and Above
    Large Capacity Loads

Vacuum Stations, Vacuum Generators Air and Electric Powered Vacuum Stations without Lifting Frames
