Electric Powered Vacuum Generators
Self-Contained Electric Vacuum Stations
VPF-57-AC Series

ANVER’s latest models of vacuum generators feature high capacity pumps, valves, filters and gauges for trouble-free operation in the most demanding production environments. Designed for use with a wide assortment of vacuum lifter assemblies and interchangeable pad attachments, these high quality Vac-Packs are ruggedly built, yet affordably priced for unmatched value. The VPF-57-AC features a sturdy welded frame construction for heavy weight load lifting capability.

Features:

  • Front Mounted Controls and Gauges
    Vacuum gauge is mounted on front cover for continuous monitoring by operator. The power switch includes built-in circuit breaker. Also included is a filter view port to monitor filter for cleaning.
  • Ergonomic Adjustable Front Handlebar
    Easy to grasp, large loop handlebar enables the operator to easily and safely maneuver the attached load without touching the load itself. Handlebar can be adjusted for smaller size loads.
  • Slide Control Valve with Push-Button Safety Lock
    The slide valve assembly allows vacuum attach and release and is mounted to the front handlebar for convenient access by the operator. The push-button safety lock is to keep the slide valve in the attach position while lifting a load to prevent accidental load release.
  • Vacuum Check Valve and Reservoir
    A check valve with vacuum reservoir helps to maintain vacuum if electrical power is interrupted, for safe handling of non-porous loads.
  • Twistlock Power Cord Plug and Recepticle
    Both Twistlock plug and receptical are provided to prevent accidental power cord separation.
  • Vacuum Leakage Sensing System (VLS-08 & VLS-08-20)
    The VLS-08 (Series) are battery powered units consisting of solid state circuitry with microprocessor, pressure sensor, LCD digital display in inches of Hg,and audible and visual warning signs (horn and red light). System is plumbed to the Vac-Pack and monitors vacuum level triggering the alarm in the event of a loss in vacuum level (10% loss for VLS-08 / 20% loss for VLS-08-20).

Maintenance:

  • Oil-Less Dry Piston Vacuum Pump Motor
    Standard: 1/2 horsepower motor drives 4.3 CFM dry piston pump.
    Hi-Flow: 3/4 horsepower motor drives 8.0 CFM dry piston pump.
  • Air Filter
    High capacity air filter provides protection against pump damage. It is mounted behind the front cover which has a view port for routine inspection.


General:

  • Vacuum Pump Description
    Standard: Oil-less dry piston pump has a 1/2 horsepower pump motor capable of generating 4.3 CFM.
    Hi-Flow: Oil-less dry piston pump has a 3/4 horsepower pump motor capable of generating 8.0 CFM.
  • Frame Construction
    The VPF-57-AC Series has a fully welded frame with a vacuum reservoir and a lifting bail and beam mounting hardware.
    • Standard for 3”x3” beam [9” hardware centers] with a structural lifting capacity rating up to 2,200 lbs (998 kg).
    • Heavy Duty for 3”x6” beam [9” hardware centers] and reinforced lifting bail with a structural lifting capacity rating up to 4,400 lbs (1,996 kg).
  • Versatility
    For larger load lifting capability or alternate power requirements, ANVER offers electric powered and self-powered mechanical vacuum generators, all with standard mounting designs for interchangeability.

Options:

  • Optional Moisture Trap (WT-PF)
    For damp applications: prevents moisture saturation of filter and possible damage to pump. Not for handling wet loads.

Specifications:

"/
Request For Quote

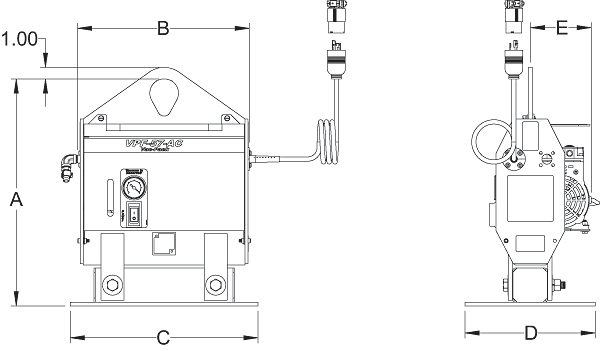

Generator Model NumberVPF-57-ACVPF-57HD-ACVPF-57-AC240VPF-57HD-AC240VPF-57-AC-8VPF-57HD-AC-8
Rated Load Capacity [lbs (kg.)]2200 (998)4400 (1996)2200 (998)4400 (1996)2200 (998)4400 (1996)
Unit Weight [lbs (kg.)]64 (29)66 (30)64 (29)66 (30)66 (30)68 (31)
A Max. Headroom [in. (mm)]18 (457)20 (508)18 (457)20 (508)18 (457)20 (508)
B Handlebar Height [in. (mm)]8 (203)10 (254)8 (203)10 (254)8 (203)10 (254)
C Handlebar Width [in. (mm)]18 (457)18 (457)18 (457)18 (457)18 (457)18 (457)
D Handlebar Length [in. (mm)]34 (864)34 (864)34 (864)34 (864)34 (864)34 (864)
E Hardware Centers [in. (mm)]9 (229)9 (229)9 (229)9 (229)9 (229)9 (229)
F Vacuu Pump Depth [in. (mm)]5.3 (135)5.3 (135)5.3 (135)5.3 (135)5.3 (135)5.3 (135)
Vacuum Pump [HP]1/21/21/21/23/43/4
Pump Capacity [SCFM]4.34.34.34.388
Incoming Power Requirement [AC]115V/1PH/60Hz
6 Amps
115V/1PH/60Hz
6 Amps
220-240V/1PH/50Hz
3 Amps
220-240V/1PH/50Hz
3 Amps
115V/1PH/60Hz
10 Amps
115V/1PH/60Hz
10 Amps
Fits Tube Size [in. (mm)]3 x 3 (76 x 76)3 x 6 (76 x 152)3 x 3 (76 x 76)3 x 6 (76 x 152)3 x 3 (76 x 76)3 x 6 (76 x 152)

Specifications for Remote Mounting:

Request For Quote
Generator Model NumberVPF-57R-ACVPF-57R-AC-8
Unit Weight [lbs (kg.)]80 (36)82 (37)
A Max. Headroom [in. (mm)]21 (533)21 (533)
B Handlebar Height [in. (mm)]15 (381)15 (381)
C Handlebar Width [in. (mm)]16.5 (419)16.5 (419)
D Handlebar Length [in. (mm)]11.5 (292)11.5 (292)
E Hardware Centers [in. (mm)]5.3 (135)5.3 (135)
Vacuum Pump [HP]1/24-Mar
Pump Capacity [SCFM]4.38-Jan
Incoming Power Requirement [AC]115V/1PH/60Hz
6 Amps
115V/1PH/60Hz
10 Amps

Click Here, to view examples of vacuum lifter frames for remote generators.

More Information


Click here for information on
selecting the right vacuum lifter


Vacuum Pad Attachments
