Two Pad Vacuum Lifter Lifting Frames
For Standard Two Pad Lifters – Capacity up to 3000 lb (1361 kg)

previous arrow
next arrow

ANVER’S Standard Vacuum Lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s Standard Horizontal Vacuum Lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER Vacuum Lifters comply fully with and meet the standards of US ANSI ASME Standard B30.20 for below-the-hook lifting devices, as well as complying with OSHA and most European requirements.

The L300M2-61, -86, and -110 two-pad lifting frames are ideal for handling steel sheets with a capacity up to 3000 lb (1361 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs. Available with Foam Pads for semi-porous / textured applications like wood, stone and diamond plate. Please note that Foam pads are not available for mechanical vacuum generators.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.

Standard Rubber Seal Lifting Frames Specifications

Compatible Vacuum Generators
Mechanical Air, Electric or Battery* Electric Battery* Electric Battery*
M250M_190x154 VPF-57-AIR_190x129 VPE1-GEN2_190x275 BAE1-GEN2_190x213 VPE3-GEN2_400X467
M250M-Series VPF-57-Series VPE1-GEN2-Series BAE1-GEN2-Series VPE3-GEN2-Series BAE3-GEN2-Series
Request For Quote
Lifting Frame NumberL300M2-61L300M2-86L300M2-110
Rated Load Capacity [lbs (kg)]3000 (1361)3000 (1361)3000 (1361)
Unit Weight [lbs (kg)]255 (116)277 (126)300 (136)
A Pad Diameter [in. (mm)]19.5 (495)19.5 (495)19.5 (495)
B Lifting Frame Headroom [in. (mm)]9 (229)9 (229)9 (229)
C Beam Length [in. (mm)]61 (1549)86 (2184)110 (2794)
D1 Hardware Mounting Centers [in. (mm)]9 (229)9 (229)9 (229)
D2 Hardware Mounting Centers [in. (mm)]12 (305)12 (305)12 (305)
D3 Hardware Mounting Centers [in. (mm)]22.38 (568)22.38 (568)22.38 (568)
E Pad Distances Max. [in. (mm)]74 (1880)99 (2515)123 (3124)
E Pad Distances Min. M250M [in. (mm)]40 (1016)40 (1016)40 (1016)
E Pad Distances Min. VPF-57HD [in. (mm)]40 (1016)40 (1016)40 (1016)
E Pad Distances Min. VPE1-H [in. (mm)]40 (1016)40 (1016)40 (1016)
E Pad Distances Min. VPE3-S [in. (mm)]52 (1321)52 (1321)52 (1321)
Maximum Sheet Size [ft (M)]8 x 6 (2.4 x 1.8)12 x 6 (3.7 x 1.8)16 x 6 (4.9 x 1.8)
Seal NumberSR-195MSR-195MSR-195M
Optional Parking StandsPS-150-3X6PS-150-3X6PS-150-3X6

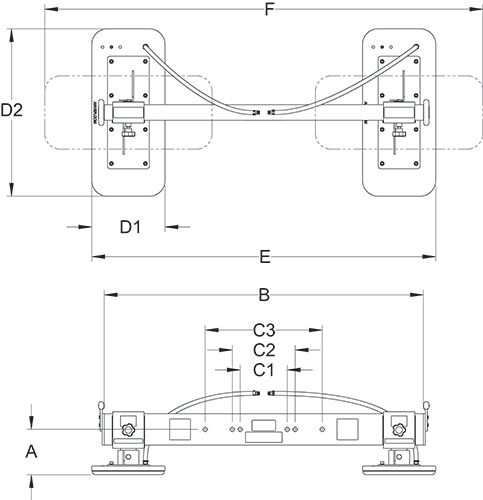

Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.

Compatible Vacuum Generators
Air, Electric or Battery* Electric Battery* Electric
VPF-57-AIR_190x129 VPE1-GEN2_190x275 BAE1-GEN2_190x213 VPE3-GEN2_400X467
VPF-57-Series VPE1-GEN2-Series BAE1-GEN2-Series VPE3-GEN2-Series
Request For Quote
Lifting Frame NumberL300M2-61FPL300M2-86FP
Rated Load Capacity [lbs (kg)]3000 (1361)3000 (1361)
Unit Weight [lbs (kg)]186 (84)211 (96)
A Lifting Frame Headroom [in. (mm)]9 (229)9 (229)
B Beam Length [in. (mm)]61 (1549)86 (2184)
C1 Hardware Mounting Centers [in. (mm)]9 (229)9 (229)
C2 Hardware Mounting Centers [in. (mm)]12 (305)12 (305)
C3 Hardware Mounting Centers [in. (mm)]22.38 (568)22.38 (568)
D Pad Size [in. (mm)]12 x 29 (305 x 737)12 x 29 (305 x 737)
E Perpendicular Pad Distances Max. [in. (mm)]67 (1702)92 (2337)
E Perpendicular Pad Distances Min. M250M [in. (mm)]N/AN/A
E Perpendicular Pad Distances Min. VPF-57HD [in. (mm)]30 (762)30 (762)
E Perpendicular Pad Distances Min. VPE1-H [in. (mm)]33 (838)33 (838)
E Perpendicular Pad Distances Min. VPE3-S [in. (mm)]43 (1092)43 (1092)
F Parallel Distances Max. [in. (mm)]84 (2134)109 (2769)
F Parallel Distances Min. [in. (mm)]60 (1524)60 (1524)
Maximum Sheet Size [ft (M)]8 x 6 (2.4 x 1.8)12 x 6 (3.7 x 1.8)
Seal NumberFR120290FR120290
Optional Parking StandsPS-150-3X6PS-150-3X6

*Battery powered vacuum generators are only recommended when handling non-porous loads.

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

Vacuum pads in fully extended position to handle maximum plate size.

Vacuum pads moved inwards to handle shorter plate.
