Vacuum Generators and Vacuum Stations
Self-Contained Electric Vacuum Stations
VPE1-GEN2 Series with ANVER Vacuum Control Module & Safety Lock-Out

ANVER’s VPE1-GEN2 Series Vac-Packs are suitable for handling non-porous to semi-porous loads. Designed for use with a wide assortment of vacuum pad attachments and lifter assemblies, these high quality Vac-Packs are ruggedly designed for heavy production use. Units are available with heavy duty frames or for mounting remotely.

Safety Features:

  • Load Sensitive Lifting Bail with Safety Lock-Out
    Pendant controls are only active when the lifter and load are lowered completely to remove the risk of accidental release by the operator. (Not on the VPE1-GEN2-RD Series, which is a standalone version, or the VPE1-GEN2-T, which is a tilter version.) Once on load, attach is almost instantaneous.
  • Attach and Release Control Pendant with Safety Lock-Out
    Provided with attach and release momentary switch with safety interlock push-button and 10 ft. coiled cord. This eliminates releasing the load when not set down.
  • Vacuum Control Module
    A solid-state Vacuum Control Module combines all the required vacuum generator controls in one rugged unit. This controls all vacuum pump functions, safety lights and is fitted with a standard audible vacuum leakage warning system.
  • Audible Vacuum Leakage Warning System (VLS-03E)
    Integrated electronically controlled vacuum loss sensor monitors vacuum level and will sound an alarm if a slow vacuum leak is present when the vacuum level drops to a pre-determined set point.
  • Vacuum Retention
    The system includes an internal check valve to stop loss of vacuum in the event of a power failure (non-porous loads). A 627 cu. in. vacuum reservoir assists in maintaining a safe vacuum level during a power failure (non-porous loads).

Additional Features:

  • Front Control Panel and Gauges
    All gauges, lights and power switches are mounted on the front of the control panel. The two vacuum gauges on the face of the panel display the level of vacuum in the manifold and in the reservoir. The control pendant clip mounts to the front handle on a 10 ft. coiled cord and provides rapid attach and release functions at the operator’s fingertips.
  • Indicator Lights
    Green light indicates “safe” vacuum level.
    Red light indicates “unsafe” vacuum level.
    White light indicates “power on.”
  • Ergonomic Control Handlebar
    Easy to grasp, large loop handlebar enables the operator to easily and safely maneuver the attached load without touching the load itself. Handlebar can be adjusted for smaller size loads.
  • Twist-Lock Power Cord Connectors
    The twist-lock receptacles, both the male and female are supplied, which helps prevent accidental disconnection from the power source.

Maintenance:

  • Bottom Hinged Front & Rear Panel Cover
    The front and back covers fold open for easy access to all components.
  • Air Filter
    Over-sized air filter provided inside of front cover features a screw-on clear filter bowl for easy filter inspection and cleaning.

Vacuum Pump:

  • Both vacuum pumps are thermally overload protected and require 115V/1PH/60Hz* 15 amps service unless otherwise specified.
  • Standard: Oil-less dry piston pump has a 1/2 horsepower pump motor capable of generating 4.3 CFM.
  • Hi-Flow: Oil-less dry piston pump has a 3/4 horsepower pump motor capable of generating 8.0 CFM.
  • Operating Temperature: 35°F to 135°F (1.7°C to 57.2°C)

Options:

  • Optional Moisture Traps (WT-VP1-[Series])
    For damp applications: prevents saturation of filter and possible damage to pump. Not for handling wet loads. Mounts on vacuum manifold.
  • *Optional Generator Configurations Available:
    In reference to our standard line of Vac-Packs noted above, other configurations and set-ups are available. Contact ANVER for further information and application requirements.

Specifications for Lifting Frames and Pad Attachments:

VPE1-GEN2_WEB-01
rfq Generator Series
Model No.
Rated
Load
Capacity
lb
(kg)
Unit
Weight
lb
(kg)
A
Max.
Headroom
in.
(mm)
B
Handlebar
Height
in.
(mm)
C
Handlebar
Width
in.
(mm)
D
Maximum
Handlebar
Length
in.
(mm)
E
Hardware
Centers
in.
(mm)
F
Fits
Tube Size
in.
(mm)
G
Vac-Pack
Depth
in.
(mm)
Vacuum
Pump
H.P.
Pump
Capacity
SCFM
Vacuum
Level

at Sea
Level
in. Hg
Incoming
Power

Requirement
(AC)
VPE1-GEN2-FD 2200
(998)
160
(73)
25.19
(640)
12.00
(304)
18.00
(457)
33.50
(851)
9.00
(229)
3 x 3
(76 x 76)
7.31
(186)
1/2 4.3 24 115V/1PH/60Hz
15 Amps
VPE1-GEN2-HD 4600
(2087)
164
(74)
27.19
(691)
14.00
(356)
18.00
(457)
33.50
(851)
12.00
(305)
3 x 6
(76 x 152)
7.31
(186)
1/2 4.3 24 115V/1PH/60Hz
15 Amps
VPE1-GEN2-XD 4600
(2087)
170
(77)
28.19
(716)
15.00
(381)
18.00
(457)
33.50
(851)
12.00
(305)
5 x 7
(127 x 178)
7.31
(186)
1/2 4.3 24 115V/1PH/60Hz
15 Amps
VPE1-GEN2-XDH 4600
(2087)
188
(85)
28.19
(716)
15.00
(381)
18.00
(457)
33.50
(851)
12.00
(305)
5 x 7
(127 x 178)
7.31
(186)
1/2 4.3 24 115V/1PH/60Hz
15 Amps
VPE1-GEN2-FD-8 2200
(998)
168
(76)
25.19
(640)
12.00
(304)
18.00
(457)
33.50
(851)
9.00
(229)
3 x 3
(76 x 76)
7.31
(186)
3/4 8 24 115V/1PH/60Hz
15 Amps
VPE1-GEN2-HD-8 4600
(2087)
172
(78)
27.19
(691)
14.00
(356)
18.00
(457)
33.50
(851)
12.00
(305)
3 x 6
(76 x 152)
7.31
(186)
3/4 8 24 115V/1PH/60Hz
15 Amps
VPE1-GEN2-XD-8 4600
(2087)
178
(81)
28.19
(716)
15.00
(381)
18.00
(457)
33.50
(851)
12.00
(305)
5 x 7
(127 x 178)
7.31
(186)
3/4 8 24 115V/1PH/60Hz
15 Amps
VPE1-GEN2-XDH-8 4600
(2087)
196
(89)
28.19
(716)
15.00
(381)
18.00
(457)
33.50
(851)
12.00
(305)
5 x 7
(127 x 178)
7.31
(186)
3/4 8 24 115V/1PH/60Hz
15 Amps



Specifications for Remote Mounting:

VPE1-GEN2-RD_WEB-01-01
rfq Model No. Unit
Weight
A
Max.
Headroom
in.
(mm)
B
Unit
Depth
in.
(mm)
C
Unit
Width
in.
(mm)
Hardware Mounting Pattern
in.
(mm)
Vacuum
Pump
H.P.
Pump
Capacity
SCFM
Vacuum Level
at Sea
Level
in. Hg
Incoming Power
Requirement
AC
D x E x J D x F x J D x K D x K
VPE1-GEN2-RD 144
(65)
17.31
(440)
16.25
(413)
16.43
(372)
 12 x 12
(305 x 305)
M20X2.5
  12 x 8
(305 x 203)
M20X2.5
 12 x 10
(305 x 254)
M8X1.25
 12 x 6
(305 x 152)
M8X1.25
1/2 4.3 24 115V/1PH/60Hz
15 Amps
VPE1-GEN2-RD-8 150
(68)
17.31
(440)
16.25
(413)
16.43
(372)
 12 x 12
(305 x 305)
M20X2.5
  12 x 8
(305 x 203)
M20X2.5
  12 x 10
(305 x 254)
M8X1.25
 12 x 6
(305 x 152)
M8X1.25
3/4 8 24 115V/1PH/60Hz
15 Amps

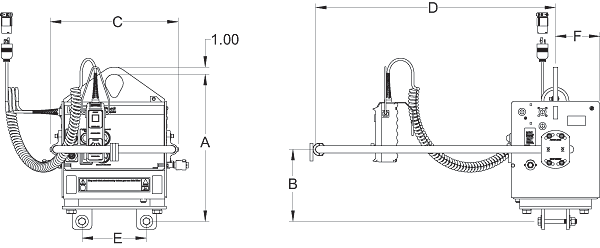

Specifications for Previous Generation VPE1 Generators (Replaced by Models Listed Above):

Model No. Rated
Load
Capacity
Unit
Weight
A
Max.
Headroom
B
Handlebar
Height
C
Handlebar
Width
D
Maximum
Handlebar
Length
E
Hardware
Centers
Fits
Tube
Size
F
Vac-Pack
Depth
Vacuum
Pump
Pump
Capacity
Vacuum Level
at Sea
Level
Incoming Power
Requirement AC
VPE1-FD 2200 lb
998 kg
136 lb
62 kg
21 in.
533 mm
10 in.
254 mm
18 in.
457 mm
33.5 in.
851 mm
9 in.
229 mm
3 x 3 in.
76 x 76 mm
6.2 in.
157 mm
1/2 H.P. 4.3 SCFM 24″ Hg 115V/1PH/60Hz
15 Amps
VPE1-HD 4600 lb
2087 kg
140 lb
64 kg
23 in.
584 mm
12 in.
305 mm
18 in.
457 mm
33.5 in.
851 mm
12 in.
305 mm
3 x 6 in.
76 x 152 mm
6.2 in.
157 mm
1/2 H.P. 4.3 SCFM 24″ Hg 115V/1PH/60Hz
15 Amps
VPE1-XD 4600 lb
2087 kg
146 lb
66 kg
24 in.
610 mm
12.5 in.
318 mm
18 in.
457 mm
33.5 in.
851 mm
12 in.
305 mm
5 x 7 in.
127 x 178 mm
6.2 in.
157 mm
1/2 H.P. 4.3 SCFM 24″ Hg 115V/1PH/60Hz
15 Amps
VPE1-XD-H 4600 lb
2087 kg
164 lb
74 kg
24 in.
610 mm
12 in.
305 mm
18 in.
457 mm
33.5 in.
851 mm
12 in.
305 mm
5 x 7 in.
127 x 178 mm
6.2 in.
157 mm
1/2 H.P. 4.3 SCFM 24″ Hg 115V/1PH/60Hz
15 Amps
VPE1-FD-8 2200 lb
998 kg
142 lb
64 kg
21 in.
533 mm
10 in.
254 mm
18 in.
457 mm
33.5 in.
851 mm
9 in.
229 mm
3 x 3 in.
76 x 76 mm
6.2 in.
157 mm
3/4 H.P. 8 SCFM 24″ Hg 115V/1PH/60Hz
15 Amps
VPE1-HD-8 4600 lb
2087 kg
146 lb
66 kg
23 in.
584 mm
12 in.
305 mm
18 in.
457 mm
33.5 in.
851 mm
12 in.
305 mm
3 x 6 in.
76 x 152 mm
6.2 in.
157 mm
3/4 H.P. 8 SCFM 24″ Hg 115V/1PH/60Hz
15 Amps
VPE1-XD-8 4600 lb
2087 kg
152 lb
69 kg
24 in.
610 mm
12.5 in.
318 mm
18 in.
457 mm
33.5 in.
851 mm
12 in.
305 mm
5 x 7 in.
127 x 178 mm
6.2 in.
157 mm
3/4 H.P. 8 SCFM 24″ Hg 115V/1PH/60Hz
15 Amps
VPE1-XD-H-8 4600 lb
2087 kg
170 lb
77 kg
24 in.
610 mm
12 in.
305 mm
18 in.
457 mm
33.5 in.
851 mm
12 in.
305 mm
5 x 7 in.
127 x 178 mm
6.2 in.
157 mm
3/4 H.P. 8 SCFM 24″ Hg 115V/1PH/60Hz
15 Amps

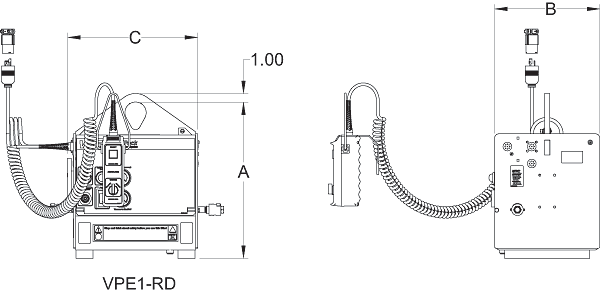

Model No. Unit
Weight
A
Max.
Headroom
B
Unit Depth
C
Unit
Width
Hardware
Mounting
Pattern
Vacuum
Pump
Pump Capacity Vacuum Level
at Sea
Level
Incoming Power
Requirement AC
VPE1-RD 122 lb
55 kg
18.5 in.
470 mm
13 in.
330 mm
15.5 in.
394 mm
12 x 8 in.
305 x 203 mm
1/2 H.P. 4.3 SCFM 24″ Hg 115V/1PH/60Hz
15 Amps
VPE1-RD-8 128 lb
58 kg
18.5 in.
470 mm
13 in.
330 mm
15.5 in.
394 mm
12 x 8 in.
305 x 203 mm
3/4 H.P. 8 SCFM 24″ Hg 115V/1PH/60Hz
15 Amps
