Vacuum System Accessories
Vacuum Hose Barb Fittings

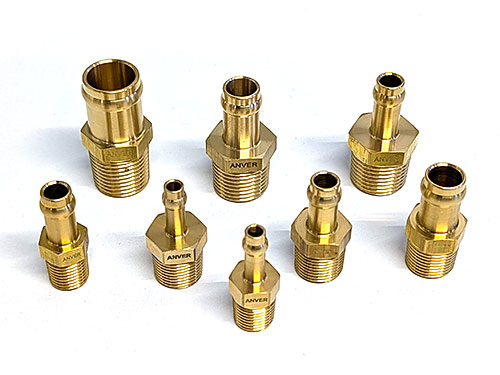

Vacuum hose barb fittings

Construction

  • All fitting threads meet standards from DrySeal American Standard Taper Pipe Thread (NPTF)
  • Made from CA 360 and CA 345 brass
  • Top quality finish
  • Meet functional requirements of SAE J512, American Society of Mechanical Engineers (ASME), and American Standards Association (ASA)
  • National Pipe Taper (NPT) or metric sizes available
  • Precision machined


Applications

ANVER fittings have been designed for vacuum or medium pressure line connections, and they are used in conjunction with ANVER wire reinforced vacuum hose and worm gear drive hose clamps.



Specifications

Max. pressure:1000 psi

Vacuum:30 in. Hg
Temperature:-65° to 250°F (-54° to +121°C)




NOTE: The NPT Hose barb finish is being changed to brass. Until all the stock has been depleted, nickel-plated hose barbs may be shipped. The G versions below will stay nickel-plated.

NPT Tapered Thread Hose Barbs
Product Photo
(Click to
Enlarge)

Item
Number

Description

Vacuum
Hose
Clamps
for Hose
Protective Covers
for Hose Clamps
A1814BA1814BHose Barb, 1/8″ NPT x 1/4″ (6.4 mm) Hose
A1838BA1838BHose Barb, 1/8″ NPT x 3/8″ (9.5 mm) Hose
A1412BA1412BHose Barb, 1/4″ NPT x 1/2″ (12.7 mm) Hose
A1414BA1414BHose Barb, 1/4″ NPT x 1/4″ (6.4 mm) Hose
Product PhotoItem NumberDescriptionHoseClampsCovers
A1438BA1438BHose Barb, 1/4″ NPT x 3/8″ (9.5 mm) Hose
A3812BHose Barb, 3/8″ NPT x 1/2″ (12.7 mm) Hose
A3814BHose Barb, 3/8″ NPT x 1/4″ (6.4 mm) Hose
A3838BA3838BHose Barb, 3/8″ NPT x 3/8″ (9.5 mm) Hose
Product PhotoItem NumberDescriptionHoseClampsCovers
A1212BA1212BHose Barb, 1/2″ NPT x 1/2″ (12.7 mm) Hose
A1234BA1234BHose Barb, 1/2″ NPT x 3/4″ (19.1 mm) Hose N/A
A1238BA1238BHose Barb, 1/2″ NPT x 3/8″ (9.5 mm) Hose
A3412BA3412BHose Barb, 3/4″ NPT x 1/2″ (12.7 mm) Hose N/A
N/A
Product PhotoItem NumberDescriptionHoseClampsCovers
A341BA341BHose Barb, 3/4″ NPT x 1″ (25.4 mm) Hose N/A
N/A
A3434BA3434BHose Barb, 3/4″ NPT x 3/4″ (19.1 mm) Hose N/A



G (BSPP*) Straight Thread Hose Barbs
Product Photo
(Click to
Enlarge)

Item Number

Description

Vacuum
Hose
Clamps
for Hose
Protective Covers
for Hose Clamps
A14G14BHose Barb, 1/4″ BSPP x 1/4″ (6.4 mm) Hose
A38G38BHose Barb, 3/8″ BSPP x 3/8″ (9.5 mm) Hose

A12G12BHose Barb, 1/2″ BSPP x 1/2″ (12.7 mm) Hose


*The “G” thread is also known as British Standard Parallel Pipe (BSPP), commonly used world-wide for Vacuum Applications.



Larger hose barbs are also available.

G – Male to NPT – Female adapters are also available.
