Vacuum Sensor and Vacuum/Pressure Switch
A-PSE5 Series Digital Switch

A-PSE5 Series Digital Vacuum Switch

The A-PSE5 Series Digital Switch offers independent use of vacuum/pressure switch head. Data can be controlled by taking the analog voltage output (1 to 5V) from the sensor head and feeding it to a digital panel meter. Mounting the detachable head close to the detecting section minimizes piping and enables response time of 1ms, the fastest in the industry, as well as greatly decreasing tact time delay. In addition, the ultra-small and light-weight design of the head means it can be easily mounted on moving sections.



Features

  • 1ms Response – Fastest in the Industry
  • DetachableHead
  • SwitchHead with operation Indicator
  • Convenient Intermediate Cable
  • EasyMounting, Mobile Pressure Port
  • Two Types of Output, NPN and PNP – for Worldwide Use



Product Order Information

Part Number Description
A-PSE511-01 Vacuum/Pressure Switch Head
A-PSE5 Vacuum/Pressure Switch Controller
A-PS5-CC3 Standard Intermediate Cable: 3m



Specifications for A-PSE511-01 Vacuum/Pressure Switch Head

Vacuum Pressure -101kPa type
Rated Pressure Range (Note 1) 0 to -101.3kPa
Pressure Withstandability 500kPa
Applicable Fluid Non-Corrosive Gas
Supply Voltage 12 to 24 DC +10% to -15% Ripple P-P 10% or less
Current Consumption 15mA or less (operation indicator off)/17mA or less (operation indicator on)
Analog Voltage Output Output Voltage:  1 to 5V (over pressure range)
Zero Point:  within 1V±2%F.S. (vacuum/positive pressure type)
within 3V±3%F.S. (compound pressure type)
Span: within 4V±3.5%F.S.
Linearity: within ±1%F.S.
Output Impedance: 1kΩ approx.

Environmental
Resistance

Pollution Degree 3 (Industrial Environment)
Protection IP40 (IEC)
Ambient Temperature 0 to +50°C (No Dew Condensation), Storage: -10 to +60°C
Ambient Humidity 35 to 85% RH, Storage: 35 to 85% RH
EMC Emission: EN50081-2, Immunity: EN50082-2
Voltage Withstandability 1,000V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 50MΩ, or more, with 500V DC megger
Vibration Resistance 10 to 500Hz frequency, 3mm amplitude, or 5G in X, Y and Z directions for two hours each
Shock Resistance 1,000m/s2 Acceleration in X, Y and Z direction for three times each
Operation indicator Orange LED light
Temperature Characteristics Over Ambient Temperature Range +10 to +40°C: within ±1%F.S. of detected pressure at +25°C
Over Ambient Temperature Range 0 to +50°C: within ±3%F.S. of detected pressure at +25°C
Voltage Characteristics Within ±0.5%F.S. for ±10% fluctuation of the supply voltage
Pressure Port A-PSE11-01 NPT 1/8 male thread / 10-32UNF female thread
Material Enclosure: PBT, Pressure Port: Brass (nickel plated)
Connecting Method Connector
Cable 0.2mm2 4-core connector attached oil resistant cabtyre cable, 100mm long
Cable Extension Extension up to total 10m is possible with 0.3mm2, or more, cable
Weight 10g approx.





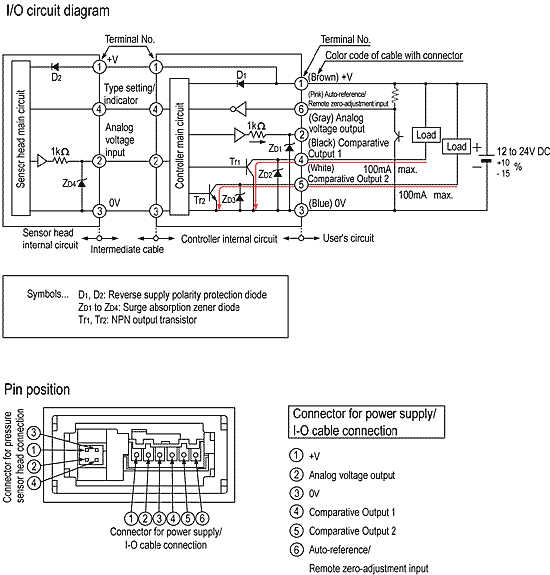

Specifications for A-PSE5 Vacuum/Pressure Switch Controller

PNP Output Type PSE5
Rated Pressure Range (Note 1) Vacuum Pressure: 0 to -101.3kPa
Set Pressure Range (Note 1) Vacuum Pressure: 101.3kPa (1.033 to -1.033kgf/cm2, 14.70 to -14.70psi, 1.013 to -101.3bar, 760 to -760mmHg, 29.9 to -29.9inHg)
Supply Voltage/Current Consumption 12 to 24 DC +10% to -15% Ripple P-P 10% or less / 60mA or less (not including pressure sensor head)
Sensor Supply Voltage Same as Supply Voltage
Comparative Output
(Comparative Output 1
Comparative Output 2)
PNP Open-Collector Transistor (2 outputs)
· Maximum source current: 100mA
· Applied Voltage: Same as supply voltage
                         (between comparative output and +V)
· Residual Voltage: 2V or less (at 100mA source current)
Utilization Category DC-12 or DC-13
Output Operation NO/NC, selectable by key operation
Output Modes Equipped with 4 types of modes: hysteresis mode, window comparator mode, leak test mode, forced output mode (selectable by key operation)
Hysteresis 1 digit (however, set response time is +2ms when auto-reference/remote zero-adjustment input is applied)
Repeatability Vacuum/positive pressure type sensor head: within ±0.2%F.S. ±1 digit (±3 digits)
Response Time 1ms, 16ms, 128ms, 512ms, or less, selectable by key operation (however, set response time is ±2ms when auto-reference/remote zero-adjustment input is applied)
Short-Circuit Protection Incorporated
Input Pressure Sensor Head Input Input Voltage Range: 1 to 5V DC (over rated pressure range)
Auto-Reference/Remote Zero-Adjustment Input Input Condition: PNP non-contact input [operates in High (rise) state]
Signal Condition: High… 5 to 30V, Low… 0.4V or less, or open, High Level Input Time… 2ms or more
Analog Voltage Output · Output Voltage: 1 to 5V DC (over rated pressure range)
· Zero Point: within 1V ±2.5%F.S. (vacuum/positive pressure type) within 3V ±3.5%F.S. (compound pressure)
· Span: within 4V ±4%F.S.
· Linearity: within ±1%F.S.
· Output Impedance: 1kΩ approx.
Display 3½ digit LCD Display (with red and green backlight) (Display refresh cycle: 256ms, 512ms, or 1024ms selectable by key operation)
Displayable Pressure Range Vacuum Pressure: 5.1 to -101.3kPa (0.052 to -1.033kgf/cm2, 0.74 to – 14.70psi, 0.05 to -1013bar, 38 to -760mmHg, 1.5 to -29.9inHg)
Operation Display LCD Segment is red when comparative output is ON, and green when it is OFF (output is selected via supplementary settings)
Analog Bar Display Bar Display in steps of 14% F.S. approx.
Operation Indicator Orange LED (lights up when comparative output is ON), green LED (lights up when comparative output 2 is ON)

Environmental Resistance

Pollution Degree 3 (Industrial Environment)
Protection IP40 (IEC)
Ambient Temperature 0 to +50°C (No dew condensation), Storage: -10 to +60°C
Ambient Humidity 35 to 85% RH, Storage: 35 to 85% RH
EMC Emission: EN50081-2, Immunity: EN50082-2
Voltage Withstandability 1,000V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 50MΩ, or more, with 500V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 150Hz frequency, 0.75mm amplitude, or 5G in X, Y and Z directions for two hours each
Shock Resistance 100m/s2 Acceleration in X, Y and Z directions for three times each
Temperature Characteristics Over Ambient Temperature Range 0 to +50°C: within ±0.5%F.S. of detected pressure at +25°C (not including pressure sensor head)
Material Front Case: ABS, LCD display section: PET, Rear case: PBT
Connecting Method Connector
Suitable Cable Conductor Cross-Section Area (Note 2) 0.16 to 32mm2 (AWG #25 to #22)
Lead Wire Diameter ø1.2 to ø1.8mm
Wire Material Tin-plated, soft, twisted, copper wire
Cable Extension Extension up to total 100m is possible with 0.3mm2, or more, cable
Weight 20g approx.

Note 1: The rated pressure range indicates the range for full product performance.
Note 2: If the wiring is longer than 2m, use a cable with a diameter of 0.3mm2 or more.
