ANVER Vacuum Pads, Vacuum Lifters, Vacuum Sheet and Plate Lifters, Vacuum End-EffectorsVacuum Cups and Suction Cups
Large Capacity Vacuum Pad Attachments
Item Number: PA1834-2P-36

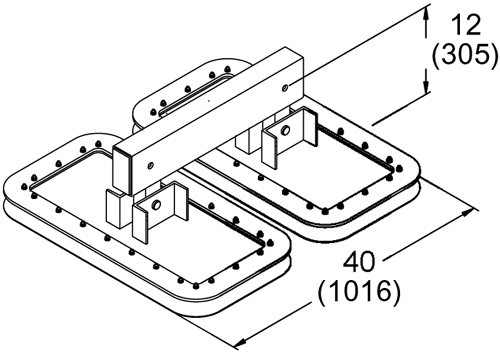

ANVER PA1834-2P-36 Pad Attachment for Heavy Loads

Vacuum Pad Attachment
Model Number		 Dimensions of Pad Attachment
in.
(mm)		 Headroom Added to Generator
(Bottom of Pad
to Mounting Holes)
in.
(mm)		 Weight of Pad Attachment
lb.
(kg)		 Maximum Lifting Capacity of Vacuum Pad Attachment Based on Vacuum Generator Used:
Capacity with
 M250M
lb.
(kg)		 Capacity with
 VPE1-H
lb.
(kg)		 Capacity with
 VPE3-S
lb.
(kg)
PA1834-2P-36 35.13 40
(892 1016)		 12
(305)		 310
(141)		 N/A N/A 6400
(2903)
