Model: 20-30 FITTING
Part Number: A-3150196AL

A-3150196AL
A-3150196AL

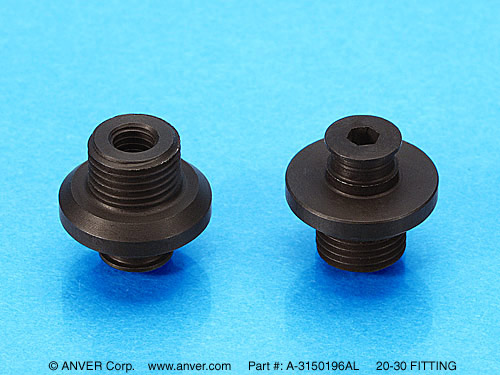

Vacuum Fitting
Part No.

Male Thread
Connection

 Female Thread
Thru Hole

L1*
Height Added
to Assembly
Using the Male Thread
in.
(mm)

L2*
Height Added
to Assembly
Using the Female Thread
in.
(mm)

Height
in.
(mm)
RFQ A-3150196AL G 1/8″
male		 M5
(5 mm)
female		 0.14
(3.5)		 0.38
(9.5)		 0.57
(14.5)

*This fitting has both a male thread and female thread for choice in assembly connection. Each thread will yield a different “Height Added to Assembly” as noted in the above chart.
