ANVER Vacuum Lifters, Mechanical Vacuum Lifters, Vacuum Lifters for Sheet and Plate, Vacuum End-EffectorsPowered Vacuum Lifters
Four Pad Powered Lifters with Powered Tilting

Standard Four Pad Adjustable Crossarm Tilters
Capacity: 250 lb (113 kg)

Model #:  ATL25M4-48-2/44

ANVER Four Pad Electric Lifter with Powered Tilt for Lifting and Tilting Glass Panels 7 ft x 6 ft (2.1 m x 1.8 m) up to 250 lb (113 kg)
Description:  Four Pad Air Powered Lifter with Powered Tilt
Max Sheet Size:  Lifting and Tilting Glass Panels 6 ft x 6 ft (1.8 m x 1.8 m) up to 250 lbs (113 kg)

Click to Request More Information

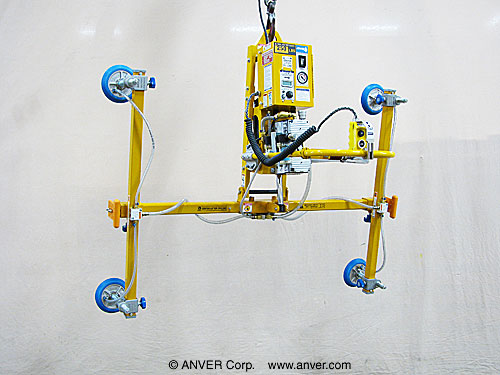

Model #:  ETL25M4-60-2/44

Description:  Four Pad Electric Lifter with Powered Tilt
Max Sheet Size:  Lifting and Tilting Glass Panels 8 ft x 6 ft (2.4 m x 1.8 m) up to 250 lbs (113 kg)

Click to Request More Information

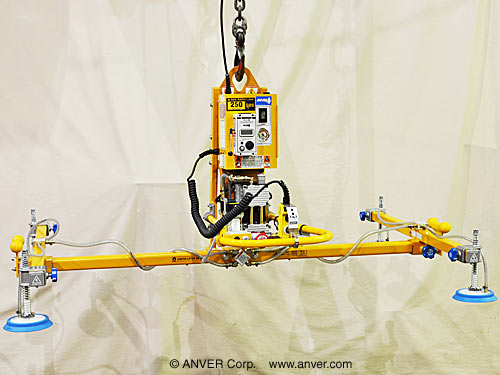

Model #:  ETL25M4-72-2/44
ANVER Four Pad Electric Lifter with Powered Tilt for Lifting and Tilting Metal Doors 10 ft x 6 ft (3.0 m x 1.8 m) up to 250 lb (113 kg)
Description:  Four Pad Electric Lifter with Powered Tilt
Max Sheet Size:  Lifting and Tilting Glass Panels 10 ft x 6 ft (3.1 m x 1.8 m) up to 250 lbs (113 kg)

Click to Request More Information


Model #:  ETL25M4-84-2/44
Description:  Four Pad Electric Lifter with Powered Tilt
Max Sheet Size:  Lifting and Tilting Glass Panels 12 ft x 6 ft (3.7 m x 1.8 m) up to 250 lbs (113 kg)

Click to Request More Information


This lifter, which weighs less than 100 lbs, represents a new series of lightweight powered tilters ideal for easily lifting and tilting smaller loads such as window assemblies. Available in two and four pad configurations with a variety of different beam lengths. Click here to contact one of our qualified application engineers to help select the right powered tilter for your needs.
