Electric Powered Vacuum Generators
Self-Contained Electric Vacuum Stations
VPF-57-ACP Series

ANVER’s latest models of vacuum generators feature high capacity pumps, valves, filters and gauges for trouble-free operation in the most demanding production environments. Designed for use with a wide assortment of vacuum lifter assemblies and interchangeable pad attachments, these high quality Vac-Packs are ruggedly built, yet affordably priced for unmatched value. The VPF-57-ACP features a sturdy welded frame construction for heavy weight load lifting capability.


Your choice of two control styles to suit your application:

Radio Controlled 3 Button Attach and Release Pendant with Plug-In Receiver
Hand held device with attach, release and safety interlock push-buttons with plug-in receiver mounted on handlebar.
Contact Factory for more information.

Plug-In 2 Button Attach and Release Control Pendant
Attach and release push-buttons located on control pendant with 10ft long coiled cord.

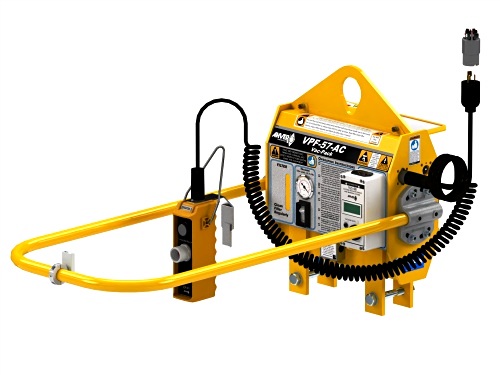

Generator shown with Plug-In Control Pendant

Features:

  • Front Mounted Controls and Gauges
    Vacuum gauge is mounted on front cover for continuous monitoring by operator. The power switch includes built-in circuit breaker. Also included is a filter view port to monitor filter for cleaning.
  • Automatic Vacuum Control for Vacuum Pump
    When Vac-Pack reaches preset vacuum level, the vacuum pump will automatically stop running. During the lift cycle, if the Vac-Pack reservoir loses 10% of its vacuum, the vacuum pump will automatically restart and run until original preset vacuum level is attained.
  • Ergonomic Adjustable Front Handlebar
    Easy to grasp, large loop handlebar enables the operator to easily and safely maneuver the attached load without touching the load itself. Handlebar can be adjusted for smaller size loads.
  • Vacuum Check Valve and Reservoir
    A check valve with vacuum reservoir helps to maintain vacuum if electrical power is interrupted, for safe handling of non-porous loads.
  • Twistlock Power Cord Plug and Receptacle
    Both Twistlock plug and receptacle are provided to prevent accidental power cord separation.
  • Vacuum Leakage Sensing System (VLS & VLS-20)
    The VLS-(Series) are battery powered units consisting of solid state circuitry with microprocessor, pressure sensor, LCD digital display in inches of Hg,and audible and visual warning signs (horn and red light). System is plumbed to the Vac-Pack and monitors vacuum level triggering the alarm in the event of a loss in vacuum level (10% loss for VLS / 20% loss for VLS-20).

Maintenance:

  • Oil-Less Dry Piston Vacuum Pump Motor
    Standard: 1/2 horsepower motor drives 4.3 CFM dry piston pump.
    Hi-Flow: 3/4 horsepower motor drives 8.0 CFM dry piston pump.
  • Air Filter
    High capacity air filter provides protection against pump damage. It is mounted behind the front cover which has a view port for routine inspection.

General:

  • Vacuum Pump Description
    Standard: Oil-less dry piston pump has a 1/2 horsepower pump motor capable of generating 4.3 CFM.
    Hi-Flow: Oil-less dry piston pump has a 3/4 horsepower pump motor capable of generating 8.0 CFM.
  • Frame Construction
    The VPF-57-AC Series has a fully welded frame with a vacuum reservoir and a lifting bail and beam mounting hardware.
    • Standard for 3”x3” beam [9” hardware centers] with a structural lifting capacity rating up to 2,200 lbs (998 kg).
    • Heavy Duty for 3”x6” beam [9” hardware centers] and reinforced lifting bail with a structural lifting capacity rating up to 4,400 lbs (1,996 kg).
  • Versatility
    For larger load lifting capability or alternate power requirements, ANVER offers electric powered and self-powered mechanical vacuum generators, all with standard mounting designs for interchangeability.

Options:

  • Optional Moisture Trap (WT-PF)
    For damp applications: prevents moisture saturation of filter and possible damage to pump. Not for handling wet loads.

Specifications:

Request For Quote
Generator Model NumberVPF-57-ACPVPF-57-ACP-8VPF-57-ACP240VPF-57-ACP240-8
Rated Load Capacity (3x3 Beams) [lbs (kg.)]2200 (998)2200 (998)2200 (998)2200 (998)
Rated Load Capacity (3x6 Beams) [lbs (kg.)]4400 (1996)4400 (1996)4400 (1996)4400 (1996)
Unit Weight (3x3 Beams) [lbs (kg.)]64 (29)66 (30)64 (29)66 (30)
Unit Weight (3x6 Beams) [lbs (kg.)]66 (30)68 (31)66 (30)68 (31)
A Max. Headroom (3x3 Beams) [in. (mm)]18.25 (464)18.25 (464)18.25 (464)18.25 (464)
A Max. Headroom (3x6 Beams) [in. (mm)]20 (508)20 (508)20 (508)20 (508)
B Handlebar Height (3x3 Beams) [in. (mm)]8.25 (210)8.25 (210)8.25 (210)8.25 (210)
B Handlebar Height (3x6 Beams) [in. (mm)]10 (254)10 (254)10 (254)10 (254)
C Handlebar Width [in. (mm)]18 (457)18 (457)18 (457)18 (457)
D Handlebar Length [in. (mm)]34 (864)34 (864)34 (864)34 (864)
E Hardware Centers [in. (mm)]9 (229)9 (229)9 (229)9 (229)
F Vacuum Pump Depth [in. (mm)]5.3 (135)5.3 (135)5.3 (135)5.3 (135)
Vacuum Pump HP1/23/41/23/4
Pump Capacity SCFM4.38.04.38.0
Incoming Power Requirement AC115V/1PH/60Hz
6 Amps
115V/1PH/60Hz
10 Amps
220-240V/1PH/50Hz
3 Amps
220-240V/1PH/50Hz
5 Amps
