Vacuum Generators and Vacuum Stations
Self-Contained Electric Vacuum Stations
VPE3-GEN2 Series with ANVER Vacuum Control Module & Safety Lock-Out

VPE3-GEN2_400X467ANVER’s VPE3-GEN2 Series Vac-Packs are suitable for handling non-porous to semi-porous loads. Designed for use with a wide assortment of vacuum pad attachments and lifter assemblies, these high quality Vac-Packs are ruggedly designed for heavy production use. Units are available with heavy duty frames or for mounting remotely.

Safety Features:

  • Load Sensitive Lifting Bail with Safety Lock-Out
    Pendant controls are only active when the lifter is lowered completely and there is no load on the bail.  This eliminates the risk of accidental release of a suspended load by the operator. (Feature not present on the VPE3-GEN2-RD Series, which is a standalone version, or the VPE3-GEN2-T Series, which is a tilter version.)
  • Attach and Release Control Pendant
    Provided with “Attach” and “Release” momentary switch, a 10 ft. plug-in coiled cord, and a mounting clip on the handlebar.
  • Vacuum Control Module
    A solid-state Vacuum Control Module combines all the required vacuum generator controls in one rugged unit. This controls all vacuum pump functions, safety lights, and is fitted with a standard audible vacuum leakage warning system.
  • Audible Vacuum Leakage Warning System (VLS-03E)
    Integrated electronically controlled vacuum loss sensor monitors vacuum level and will sound an alarm if a slow vacuum leak is present and the vacuum level drops to a predetermined set point.
  • Vacuum Retention
    The system includes an internal check valve to stop loss of vacuum in the event of a power failure (non-porous loads).  A 5.4 gallon (1247 cu. in.) vacuum reservoir assists in maintaining a safe vacuum level during a power failure (non-porous loads).

Additional Features:

  • Front Control Panel and Gauges
    All gauges, lights, and power switches are mounted on the front of the control panel. The two vacuum gauges on the face of the panel display the level of vacuum in the manifold and in the reservoir.
  • Indicator Lights – Front, Left & Right Side
    Green light indicates “Safe” vacuum level.
    Red light indicates “Unsafe” vacuum level.
    White light indicates “Power On.”
  • Ergonomic Control Handlebar
    Easy to grasp, large loop handlebar enables the operator to easily and safely maneuver the attached load without touching the load itself. Handlebar can be adjusted for smaller size loads.
  • Twist-Lock Power Cord Connector
    The twist-lock receptacle prevents accidental disconnection from the power source.  Both male and female halves are supplied.

Maintenance:

  • Front & Rear Panel Cover
    The front and rear covers pivot open for easy access to all components.
  • Air Filter
    Over-sized air filter provided inside of front cover features a screw-on clear filter bowl for easy filter inspection and cleaning.

Vacuum Pump(s):

  • All vacuum pumps have thermal overload protection and require 115V/1PH/60Hz* incoming power unless otherwise specified. Operating temperature for each pump: 35°F to 135°F (1.7°C to 57.2°C]
  • Standard [Code D8D]: (2) Oil-less dry piston pump. Each has a 3/4 horsepower pump motor capable of generating 8.0 CFM/pump.  Other pump configurations are available. Contact ANVER for further information and application requirements.

Options:

  • Optional Moisture Traps (WT-VP3-[Series])
    For damp applications: prevents saturation of filter and possible damage to pump. Not for handling wet loads. Mounts on vacuum manifold.
  • *Optional Generator Configurations and Voltages Available:
    In reference to our standard line of Vac-Packs noted above, other configurations, voltages and set-ups are available. Contact ANVER for further information and application requirements.

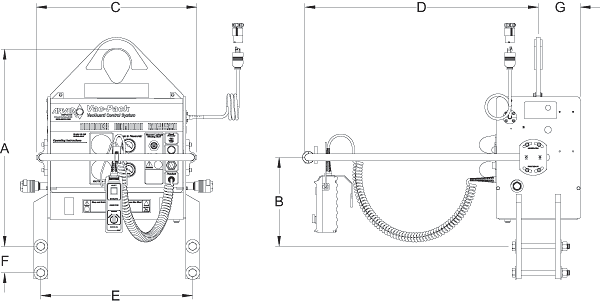

Specifications for Lifting Frames and Pad Attachments:

VPE3-GEN2-DWG
rfq Generator Series
Model No.
Rated
Load
Capacity
lb
(kg)
Unit
Weight
lb
(kg)
A
Max.
Headroom
in.
(mm)
B
Handlebar
Height
in.
(mm)
C
Handlebar
Width
in.
(mm)
D
Maximum
Handlebar
Length
in.
(mm)
E
Hardware
Centers
in.
(mm)
F
Fits
Tube Size

in.
(mm)
G
Vac-Pack
Depth
in.
(mm)
H
Hardware
Spacing
in.
(mm)
Vacuum
Level

at Sea
Level
in. Hg
VPE3-GEN2-L 2200
(997)
TBD 30.13
(765)
12.44
(316)
24.5
(623)
34
(864)
9
(229)
3 x 3
(76 x 76)
8.39
(213)
N/A 24
VPE3-GEN2-S 6900
(3129)
TBD 31.5
(800)
13.81
(351)
24.5
(623)
34
(864)
22.38
(568)
3 x 6
(76 x 152)
8.39
(213)
N/A 24
VPE3-GEN2-H 7000
(3175)
TBD 31.5
(800)
13.81
(351)
24.5
(623)
34
(864)
22.38
(568)
5 x 7
(127 x 178)
8.39
(213)
N/A 24
VPE3-GEN2-HD 10000
(4535)
TBD 31.5
(800)
13.81
(351)
24.5
(623)
34
(864)
23.38
(594)
5 x 7
(127 x 178)
8.39
(213)
N/A 24
VPE3-GEN2-X 10000
(4535)
TBD  28
(711)
 12.31
(313)
24.5
(623)
34
(864)
23.38
(594)
8 x 6
(203 x 152)
8.39
(213)
4
(102)
24

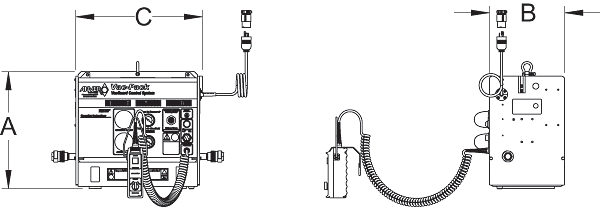

Specifications for Remote Mounting:

VPE3-GEN2-DWG-R
rfq Model No. Unit
Weight
A
Max.
Headroom
in.
(mm)
B
Unit
Depth
in.
(mm)
C
Unit
Width
in.
(mm)
Hardware Mounting Pattern
in.
(mm)
Vacuum Level
at Sea
Level
in. Hg
(4) M20x2.5 (4) M10x1.25
D x F E x F
VPE3-GEN2-R  TBD 22.11
(562)
18.35
(466)
25.38
(645)
12 x 8
(305 x 203)
14 x 8
(356 x 203)
24



Specifications for Previous Generation VPE3 Generators (Replaced by Models Listed Above):

  • Model Number Rated
    Load
    Capacity
    Unit
    Weight
    A
    Max.
    Headroom
    B
    Handlebar
    Height
    C
    Handlebar
    Width
    D
    Handlebar
    Length
    E
    Hardware
    Centers
    F
    Hardware
    Spacing
    G
    Vacuum
    Pump
    Depth
    VPE3-L 2200 lb
    998 kg
    218 lb
    99 kg
    27 in.
    686 mm
    11 in.
    279 mm
    24 in.
    610 mm
    34 in.
    864 mm
    9 in.
    229 mm
    N/A 6.2 in.
    157 mm
    VPE3-S 6900 lb
    3130 kg
    222 lb
    101 kg
    29 in.
    737 mm
    13 in.
    330 mm
    24 in.
    610 mm
    34 in.
    864 mm
    22.38 in.
    568 mm
    N/A 6.2 in.
    157 mm
    VPE3-H 7000 lb
    3175 kg
    224 lb
    102 kg
    29 in.
    737 mm
    13 in.
    330 mm
    24 in.
    610 mm
    34 in.
    864 mm
    22.38 in.
    568 mm
    N/A 6.2 in.
    157 mm
    VPE3-HO 7000 lb
    3175 kg
    228 lb
    103 kg
    29 in.
    737 mm
    13 in.
    330 mm
    24 in.
    610 mm
    34 in.
    864 mm
    22.38 in.
    568 mm
    3.9 in.
    99 mm
    6.2 in.
    157 mm
    VPE3-HD 10000 lb
    4536 kg
    236 lb
    107 kg
    29 in.
    737 mm
    13 in.
    330 mm
    24 in.
    610 mm
    34 in.
    864 mm
    23.38 in.
    594 mm
    N/A 6.2 in.
    157 mm
    VPE3-HDO 10000 lb
    4536 kg
    246 lb
    112 kg
    29 in.
    737 mm
    13 in.
    330 mm
    24 in.
    610 mm
    34 in.
    864 mm
    23.38 in.
    594 mm
    4.1 in.
    104 mm
    6.2 in.
    157 mm
    VPE3-X 10000 lb
    4536 kg
    236 lb
    107 kg
    28 in.
    711 mm
    11 in.
    279 mm
    24 in.
    610 mm
    34 in.
    864 mm
    23.38 in.
    594 mm
    4.0 in.
    102 mm
    6.2 in.
    157 mm


  • Model Number Vacuum
    Pump
    Pump
    Capacity
    Vacuum
    Level
    At Sea
    Level
    Incoming Power
    Requirement AC
    Fits
    Tube
    Size
    VPE3-L 3/4 10 24″ Hg 115V/1PH/60Hz – 15 Amps 3 x 3 in.
    76 x 76 mm
    VPE3-S 3/4 10 24″ Hg 115V/1PH/60Hz – 15 Amps 3 x 6 in.
    76 x 152 mm
    VPE3-H 3/4 10 24″ Hg 115V/1PH/60Hz – 15 Amps 5 x 7 in.
    127 x 178 mm
    VPE3-HO 3/4 10 24″ Hg 115V/1PH/60Hz – 15 Amps 5 x 7 in.
    127 x 178 mm
    VPE3-HD 3/4 10 24″ Hg 115V/1PH/60Hz – 15 Amps 5 x 7 in.
    127 x 178 mm
    VPE3-HDO 3/4 10 24″ Hg 115V/1PH/60Hz – 15 Amps 5 x 7 in.
    127 x 178 mm
    VPE3-X 3/4 10 24″ Hg 115V/1PH/60Hz – 15 Amps 6 x 8 in.
    152 x 203 mm



Model Number Unit
Weight
A
Max.
Headroom
B
Vacuum
Pump
Depth
C
Vacuum
Pump
Width
Hardware
Mounting
Pattern
Vacuum
Pump
Pump
Capacity
Vacuum
Level
At Sea
Level
Incoming Power
Requirement AC
Fits
Tube
Size
VPE3-R 188 lb
85 kg
20 in.
508 mm
13 in.
330 mm
21 in.
533 mm
8 x 12 in.
203 x 305 mm
3/4 10 24″ Hg 115V/1PH/60Hz – 15 Amps Remote Applications
