 Air Powered Multi-Pad In-Line Lifter

Model #:  VPF-57-AIR with PA120M4-48FX-B10
Description:  Air Powered Vacuum Generator with Four Pad Lifting Frame with Foam Pads
Application:  Lifting & Handling Stone Slabs 6 ft x 3 ft (1.8 m x .9 m) up to 1200 lb (544 kg)

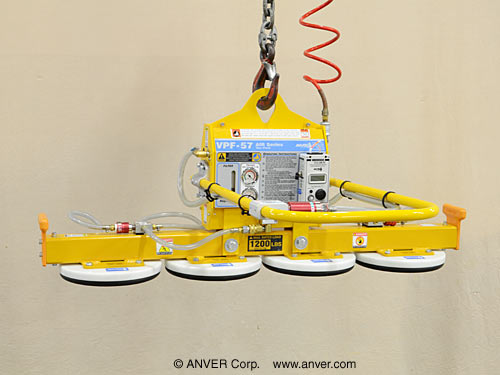

ANVER Air Powered Vacuum Generator with Four Pad Lifting Frame with Foam Pads Inline for Lifting & Handling Wood Panels 10 ft x 6 ft (3.0 m x 1.8 m) up to 1200 lb (544 kg)




Multiple Foam Pad Attachments
Product
(Click to Enlarge)		 Pad Number* Replacement
Seal Number		 Overall Dimensions
W x L
in.
(mm)

Mounting Hole
Centers
in.
(mm)

 Port Size
NPT

Rated Load
Capacity*
(Horizontal)
lb
(kg)

 Rated Load
Capacity*
(Vertical)
lb
(kg)

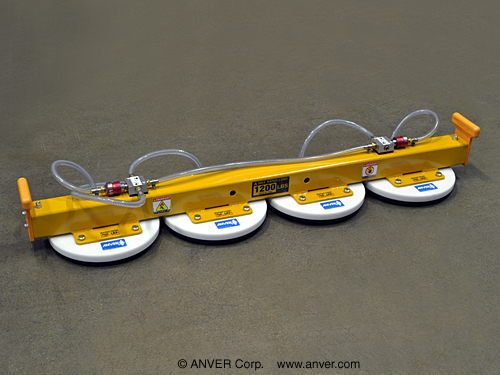

PA120M4-48FX-B10 PA120M4-48FX-B10
24531055 12 x 52.5 (305 x 1336) 9.00
(229)		 3/8″

1200
(544)

 600
(272)
