GF-Series Heavy Duty Electric Powered Vacuum Generator Lifting Frames
5 Ton (4536 kg)
|
The GF Series generators incorporate the latest in sophisticated lifting technology for the handling industry, increasing speed, productivity and efficiency. Available in electric and battery powered. Vac-Packs can be replaced in minutes to minimize downtime in case of service. The GF-Series speeds production due to a large reservoir allowing the lifter to attach almost instantly, decreasing attach time. The large reservoir not only increases efficiency but also increases safety in the case of power failure due to the vacuum that remains in the system.
Your choice of FOUR control styles to suit your application:
| Standard Controls |
 Click for Video |
Electric Self-Cycling Attach/Release
Instant attach/release is provided via the hoist up and down movement. The attach and release alternate each lift cycle for fast, efficient handling. Similar to our line of Mechanical Generators. Click here to find out more about Electric Self-Cycling.
Features:
- No Pendant or Radio Controls Required for Attach/Release.
- Extremely Safe. Load cannot be released until it is set down on a surface.
- Simple to operate.
|
| Optional Controls |
 |
Radio Controlled 3 Button Attach / Release / Interlock Transmitter with Plug-In Receiver
Hand held device with attach, release and safety interlock push buttons with holster mounted on front handlebar. Plug-in receiver is mounted on side of vacuum generator. Contact Factory for more information.
Includes:
- Radio Control Transmitter and Mounting Holster
- Radio Control Receiver and Mounting Bracket
|
 |
Plug-In Attach / Release / Interlock Control Pendant
Attach/Release momentary switch and safety interlock push-button located on control pendant with 10ft long coiled cord.
Includes:
- Pendant Control and Mounting Holster
- Plug-In, Replaceable Coil Cord, 10 ft. long.
|
 |
Plug-In Harness, Customer Radio Receiver Interface
Control Harness allows you to wire your own radio receiver for integration of Attach / Release / Interlock.
Includes:
|
|

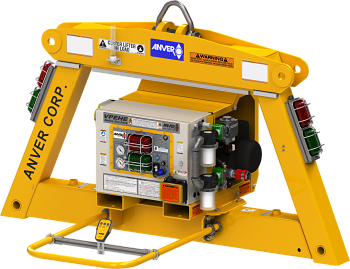

Generator shown with ESC Electric Self-Cycling Control
Features:
- State-of-the-art Vacuum Control which minimizes vacuum pump use greatly increasing number of hours between servicing.
- Dual redundancy safety Lock-out Lifting Bail that requires operator to first set the unit down before they release the load.
- Front Control Panel and Gauges
- Indicator Lights
- Vacuum Retention
- Thermal Overload Protection
- Ergonomic Adjustable Front Handlebar
- Audible Vacuum Leakage Warning System
For Electrical Power Requirements refer to individual vacuum generator series pages (see table below).
|
 |
| Request For Quote | | | | | |
| Generator Series Model No. | GF5T3B | GF5TB10-17 | GF5T3 | GF5T24 | GF5T48 |
| Vacuum Generator Series | BAE3-GEN3 | BAE10 | VPE3-GEN3 | VPEHE24 | VPEHE48 |
| Vacuum Pump [SCFM] | 7.5 | 17 | (2x) 8 | 24 | 50 |
| Vacuum Level at Sea Level [in. Hg (mmHg)] | 24 | 24 | 24 | 24 | 24 |
| Unit Weight [lb (kg)] | 796 (3361) | 801 (363) | 646 (293) | 616 (279) | 755 (342) |
| Reservoir Size [Gallon (L)] | 11 (42) | 7.6 (29) | 11 (42) | 7.6 (29) | 7.6 (29) |
| Energy Saver / Quiet Automatic Shut-Off | YES | YES | YES | YES | YES |
|
| Optional Controls |
 |
Product
Photo |
Part
Number |
Description |
|
|
|
RCPK-ARI |
Radio Control Kit for Vac-Packs, Attach/Release/Interlock
Kit Includes:
- Radio Control Transmitter and Mounting Holster
- Radio Control Receiver and Mounting Bracket
|
|
|
|
EPK-AC/DC-ARI |
Pendant Control Kit for Vac-Packs, Attach/Release/Interlock
Kit Includes:
- Pendant Control and Mounting Holster
- Plug-In, Replaceable Coil Cord, 10 ft. long.
|
|
|
|
34000332 |
Plug-In Harness, Customer Radio Receiver Interface
Kit Includes:
|
| Recommended Spare Parts |
|
Product
Photo |
Part
Number |
Description |
|
|
 |
UB-125-R |
Utility Bar Assembly for 1.25″ Dia. Handlebars (VPE3-GEN3 / BAE3-GEN3 / GF Series) |
|
|
 |
21301186 |
Radio Control Transmitter Holster Assembly, Bolt-on for Utility Bar (Mounting Hardware Included) |
|
|
 |
21301187 |
Pendant Mounting Bracket Assembly, Bolt-on for Utility Bar (Mounting Hardware Included) |
|
|
 |
RCT-PCLIP |
Plastic Belt Clip for RCT Transmitter |
|
|
 |
RCT-MCLIP |
Metal Belt Clip for RCT Transmitter |
|
|
 |
RCT-SCREW |
Belt Clip Screw for RCT Transmitter |
|
|
 |
RCT-NYLONCOVER |
Protective Nylon Cover for RCT Transmitter |
13600118 M
