Four Pad Vacuum Lifter Lifting Frames
For Standard Four Pad Lifters with Adjustable Crossarms – Capacity up to 500 lb (227 kg)

The L50M4-61-2/44 and -86-2/44 four-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 500 lb (227 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

Mechanical, Self-Powered Vacuum Generators with Lifting Frames Powered Vacuum Generators with Lifting Frames

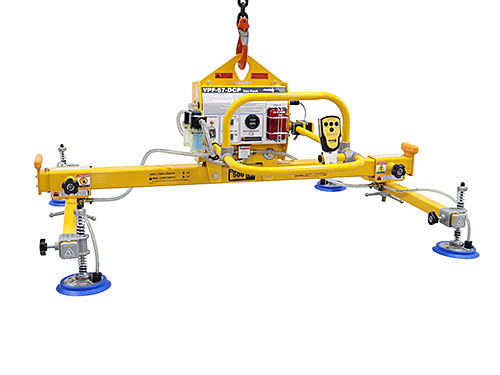

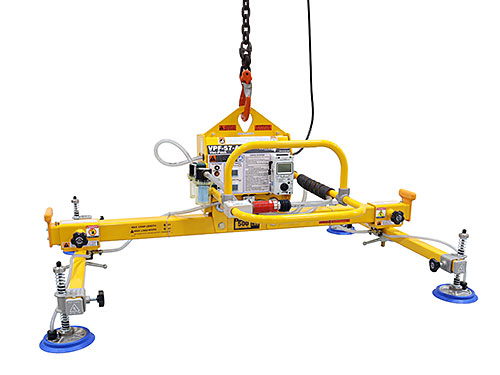

M100M with L50M4-61-2/44 VPF-57-AC with L50M4-61-2/44
ANVER Four Pad Self-Powered Mechanical Vacuum Lifter vpf-57-ac-l50m4-61-2^44
Description Self-Powered, Mechanical Vacuum Generator with Four Pad Lifting Frame Description:  Electric Powered Vacuum Generator with Four Pad Lifting Frame
Max Sheet Size Lifting & Handling  Sheets, 8 ft x 6 ft (2.4 m x 1.8 m) up to 500 lb (227 kg) Max Sheet Size Lifting & Handling  Sheets, 8 ft x 6 ft (2.4 m x 1.8 m) up to 500 lb (227 kg)
Options Shown Parking Stands: PS-150 Options Shown Parking Stands: PS-150
Click to Request More information Click to Request More information

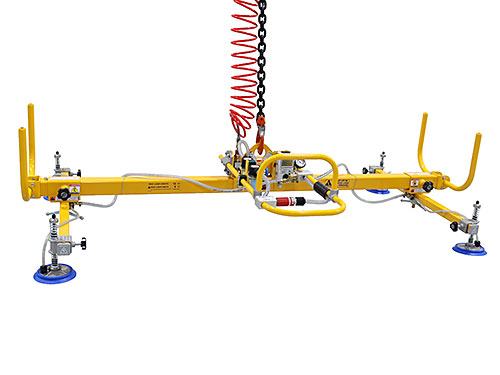

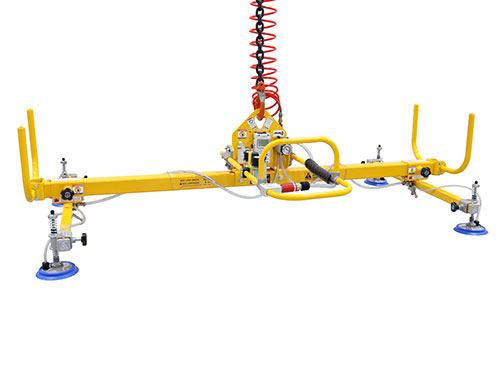

M100M with L50M4-86-2/44 VPF-57-AIR with L50M4-86-2/44
ANVER Four Pad Self-Powered Mechanical Vacuum Lifter
Description Self-Powered, Mechanical Vacuum Generator with Four Pad Lifting Frame Description:  Air Powered Vacuum Generator with Four Pad Lifting Frame
Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 500 lb (227 kg) Max Sheet Size Lifting & Handling Sheets 12 ft x 6 ft (3.7 m x 1.8 m) up to 500 lb (227 kg)
Options Shown Parking Stands: PS-150
Click to Request More information Click to Request More information




Standard Rubber Seal Lifting Frames Specifications


76500017-018
Lifting
Frame

Number

Rated
Load
Capacity
lb
(kg)

Unit
Weight
lb
(kg)

A
Lifting
Frame
Headroom
in.
(mm)

B
Spreader
Beam
Length
in.
(mm)

C
Hardware
Mounting
Centers
in.
(mm)

D
Pad
Diameter
in.
(mm)

E
Pad Distances
in.
(mm)

F
Crossarm
Length
in.
(mm)

G
Pad Distances
in.
(mm)

Seal
Number
Maximum Minimum Maximum Minimum

L50M4-61-2/44

500
(227)

90
(41)

10
(254)

63
(1600)

9
(229)

7.75
(197)

64
(1626)

30
(762)

44
(1118)

48
(1219)

20
(508)

SSR-76

L50M4-86-2/44

500
(227)

105
(48)

10
(254)

88
(2235)

9
(229)

7.75
(197)

89
(2261)

30
(762)

44
(1118)

48
(1219)

20
(508)

SSR-76



Standard Foam Seal Lifting Frames Specifications

Note: Foam pads are available for air and electrical powered vacuum generators only.


76500594
Lifting
Frame

Number

Rated
Load
Capacity
lb
(kg)

Unit
Weight
lb
(kg)

A
Lifting
Frame
Headroom
in.
(mm)

B
Spreader
Beam
Length
in.
(mm)

C
Hardware
Mounting
Centers
in.
(mm)

D
Pad
Diameter
in.
(mm)

E
Pad Distances
in.
(mm)

F
Crossarm
Length
in.
(mm)

G
Pad Distances
in.
(mm)

Seal
Number
Maximum Minimum Maximum Minimum

L50M4-61-2/44FP

500
(227)

100
(45)

10
(254)

63
(1600)

9
(229)

8.25
(210)

65
(1651)

31
(787)

44
(1118)

49
(1245)

21
(533)

FR88

L50M4-86-2/44FP

500
(227)

115
(52)

10
(254)

86
(2184)

9
(229)

8.25
(210)

90
(2286)

31
(787)

44
(1118)

49
(1245)

21
(533)

FR88





Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

Vacuum pads( the ‘E’ and ‘G’ Maximum Pad Distances position to handle maximum plate size.

Vacuum pads moved(ward to ‘E’ and ‘G’ Minimum Pad Distances position to handle smaller plate sizes.

Crossarms can pivot to near parallel with spreader beam to handle narrow plates.





Click Here to See More Details of Different Suction Cup and Vacuum Cup Materials
