Two Pad Vacuum Lifter Lifting Frames
For Standard Two Pad Lifters – Capacity up to 1000 lb (454 kg)

M100M-L100M2-481
VPF-57-AC-L100M2-61
M100M-L100M2-61

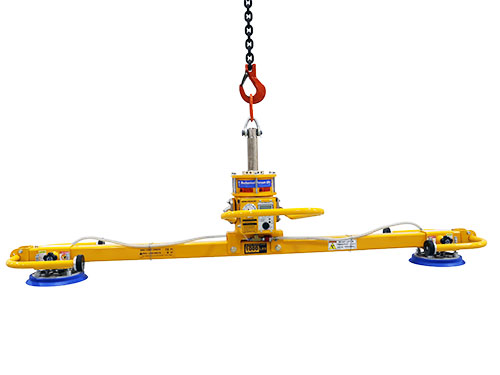

M100M-L100M2-861
M150M-L100M2-86
VPF-57-AC-L100M2-48FP
VPF-57-AC-L100M2-86
VPF-57-ACP-L100M2-86
VPF-57_30-AIR-L100M2-61FP-720
VPF-57_20-AIR-L100M2-86
VPFL4-20-AIR-T-L100M2-86
VPF-57_30-AIR-L100M2-86FP
VPF-57-DCP-L100M2-61
VPF-57-DCP-L100M2-86
previous arrow
next arrow
M100M-L100M2-481
VPF-57-AC-L100M2-61
M100M-L100M2-61
M100M-L100M2-861
M150M-L100M2-86
VPF-57-AC-L100M2-48FP
VPF-57-AC-L100M2-86
VPF-57-ACP-L100M2-86
VPF-57_30-AIR-L100M2-61FP-720
VPF-57_20-AIR-L100M2-86
VPFL4-20-AIR-T-L100M2-86
VPF-57_30-AIR-L100M2-86FP
VPF-57-DCP-L100M2-61
VPF-57-DCP-L100M2-86

ANVER’S Standard Vacuum Lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s Standard Horizontal Vacuum Lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER Vacuum Lifters comply fully with and meet the standards of US ANSI ASME Standard B30.20 for below-the-hook lifting devices, as well as complying with OSHA and most European requirements.

The L100M2-48, -61, and -86 two-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 1000 lb (454 kg). The type of vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend on your application needs. Available with Foam Pads for semi-porous / textured applications like wood, stone and diamond plate. Please note that Foam pads are not available for mechanical vacuum generators.

Contact ANVER for more information, or fill out a Lifter Info/Quote Request Form and a Sales Engineer will respond to your request shortly.

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.


Standard Rubber Seal Lifting Frames Specifications

Compatible Vacuum Generators
Mechanical Air or Electric Air, Electric or Battery* Electric Battery*
M100M_190x182 VPFL4-AIR_190x83 VPF-57-AIR_190x129 VPE1-GEN2_190x275 BAE1-GEN2_190x213
M100M-Series VPFL4-Series VPF-57-Series VPE1-GEN3-Series BAE1-GEN3-Series

Request For Quote
Lifting Frame NumberL100M2-48L100M2-61L100M2-86
Rated Load Capacity [lbs (kg)]1000 (454)1000 (454)1000 (454)
Unit Weight [lbs (kg)]63 (29)75 (34)92 (42)
A Pad Diameter [in. (mm)]12 (305)12 (305)12 (305)
B Lifting Frame Headroom [in. (mm)]5.1 (130)5.1 (130)5.1 (130)
C Beam Length [in. (mm)]50 (1270)63 (1600)88 (2235)
D Hardware Mounting Centers [in. (mm)]9 (229)9 (229)9 (229)
E Pad Distances Maximum [in. (mm)]53 (1346)66 (1676)91 (2311)
E Pad Distances Minimum [in. (mm)]34 (864)34 (864)34 (864)
Maximum Sheet Size [ft (M)]6 x 6 (1.8 x 1.8)8 x 6 (2.4 x 1.8)12 x 6 (3.7 x 1.8)
Seal NumberSSR-122SSR-122SSR-122
Optional Parking StandsPS-150-3X3PS-150-3X3PS-150-3X3

Standard Foam Seal Lifting Frames Specifications
Note: Foam pads are available for air and electrical powered vacuum generators only.


Compatible Vacuum Generators
Air or Electric Air, Electric or Battery* Electric Battery*
VPFL4-AIR_190x83 VPF-57-AIR_190x129 VPE1-GEN2_190x275 BAE1-GEN2_190x213
VPFL4-Series VPF-57-Series VPE1-GEN3-Series BAE1-GEN3-Series
Request For Quote
Lifting Frame NumberL100M2-48FPL100M2-61FPL100M2-86FP
Rated Load Capacity [lbs (kg)]1000 (454)1000 (454)1000 (454)
Unit Weight [lbs (kg)]86 (39)100 (45)118 (54)
A Pad Size [in. (mm)]10 x 14 (254 x 356)10 x 14 (254 x 356)10 x 14 (254 x 356)
B Lifting Frame Headroom [in. (mm)]6.8 (174)6.8 (174)6.8 (174)
C Beam Length [in. (mm)]50 (1270)63 (1600)88 (2235)
D Hardware Mounting Centers [in. (mm)]9 (229)9 (229)9 (229)
E Pad Distances Maximum [in. (mm)]51 (1295)64 (1626)89 (2261)
E Pad Distances Minimum [in. (mm)]31 (787)31 (787)31 (787)
F Pad Distances Maximum [in. (mm)]55 (1397)68 (1727)93 (2362)
F Pad Distances Minimum [in. (mm)]35 (889)35 (889)35 (889)
Maximum Sheet Size [ft (M)]6 x 6 (1.8 x 1.8)8 x 6 (2.4 x 1.8)12 x 6 (3.7 x 1.8)
Seal NumberFR100140FR100140FR100140
Optional Parking StandsPS-150-3X3PS-150-3X3PS-150-3X3


*Battery powered vacuum generators are only recommended when handling non-porous loads.
13600043C

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

Vacuum pads in fully extended position to handle maximum plate size.

Vacuum pads moved inwards to handle shorter plate.
