Three Pad Vacuum Lifters with Powered 90° Tilt
For Standard Three Pad Lifters with Powered 90° Tilt – Capacity up to 750 lb (340 kg)

ET75M3-110FP
AT75M3-110FP
ET75M3-86
previous arrow
next arrow
ET75M3-110FP
AT75M3-110FP
ET75M3-86

Anver Vacuum Tilters and Upenders are loaded with safety features and have come to set the standard for safe tilting of loads. Each version has been revised over the years to perform better and last longer. The pads, vacuum generators, frame, controls, hardware, filters, safety features and handlebars etc are all new and improved. Every aspect of the lifters has been redesigned and the latest represent the best Tilters available.

The standard Electric-Powered and Air-Powered Series Vacuum Lifters/Tilters are designed to significantly reduce the effort of upending heavy loads while providing powerful suction force and 90 degree tilt capability. Built with safety in mind, these lifters/tilters are loaded with protective features including: a VLS System, 9V battery powered vacuum leakage sensor and warning system; an attach/release slide valve with safety lock; and locking knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable). The ET and AT Series Lifters/Tilters are capacity rated at a maximum vacuum level of 24 in. Hg (609.6 mm Hg) with a 4:1 safety factor on vacuum holding (unless otherwise specified).

The dual filter/reservoir assembly, equipped on both electric-powered and air-powered vacuum upenders, offers a clean and reliable vacuum hold in less than ideal environments. Constructed with an ergonomic lifter handlebar, a welded steel lifting frame, and end of beam positioning handles, operators can use this equipment with ease and comfort for a wide range of loads and applications.

*Load weight and depth affect the final angle that the lifter achieves. Consult ANVER for ET/AT loads thicker than 1.18 in. (3cm) due to center of gravity offset.

Note: The unit weight does not include optional accessories.

Available with Foam Pads for semi-porous / textured applications like wood, stone and diamond plate. Please note that Foam pads are not available for mechanical vacuum generators.

Standard Air Powered Rubber Seal Tilters Specifications

Request For Quote

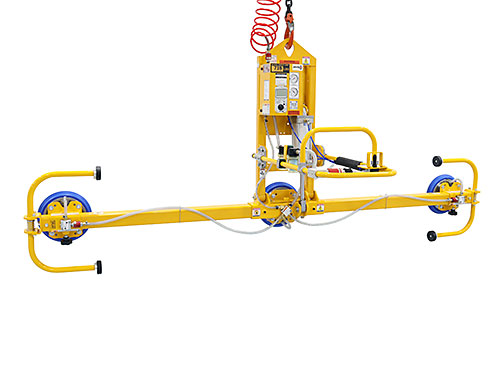

Air Powered Lifter ModelAT75M3-61AT75M3-86AT75M3-110
Rated Load Capacity [lbs (kg.)]750 (340)750 (340)750 (340)
Unit Weight [lbs (kg.)]220 (100)240 (91)265 (120)
Power Required [psi]90-12090-12090-120
Air Consumption [SCFM (l/min.)]*10.5 (297.3)*10.5 (297.3)*10.5 (297.3)
Tilt SpeedVariable
(100% Duty Cycle)
Variable
(100% Duty Cycle)
Variable
(100% Duty Cycle)
A Pad Distances Max. [in. (mm)]66 (1676)91 (2311)115 (2921)
A Pad Distances Min. [in. (mm)]38 (965)38 (965)38 (965)
B Beam Length [in. (mm)]63 (1600)88 (2235)112 (2845)
C Pad Dimension [in. (mm)]12 (305)12 (305)12 (305)
D Handlebar Length [in. (mm)]36 (914)36 (914)36 (914)
E Pad Distance From Bail [in. (mm)]5 (127)5 (127)5 (127)
F Pad Distance From Frame [in. (mm)]2 (51)2 (51)2 (51)
G Maximum Vertical Headroom [in. (mm)]45 (1143)45 (1143)45 (1143)
H Maximum Horizontal Headroom [in. (mm)]40 (1016)40 (1016)40 (1016)
J Pad Distance from Handlebar [in. (mm)]14 (356)14 (356)14 (356)
Maximum Plate Dimensions [ft. (M)]8 x 6 (2.5 x 1.8)10 x 6 (3.1 x 1.8)12 x 6 (3.7 x 1.8)
Pad NumberVP122VP122VP122
Optional Parking StandsPS-150-3X3PS-150-3X3PS-150-3X3

*Air Consumption is “0” on a non-porous material once the vacuum level is reached at peak value

Standard Air Powered Foam Seal Tilters Specifications

Request For Quote
Air Powered Lifter ModelAT75M3-61FPAT75M3-86FPAT75M3-110FP
Rated Load Capacity [lbs (kg.)]750 (340)750 (340)750 (340)
Unit Weight [lbs (kg.)]240 (109)260 (118)280 (127)
Power Required [psi]90-12090-12090-120
Air Consumption [SCFM (l/min.)]*10.5 (297.3)*10.5 (297.3)*10.5 (297.3)
Tilt SpeedVariable
(100% Duty Cycle)
Variable
(100% Duty Cycle)
Variable
(100% Duty Cycle)
A Pad Distances Max. [in. (mm)]64 (1626)89 (2261)115 (2870)
A Pad Distances Min. [in. (mm)]36 (914)36 (914)36 (914)
B Beam Length [in. (mm)]63 (1600)88 (2235)112 (2845)
C Pad Dimension [in. (mm)]10 x 14 (254 x 356)10 x 14 (254 x 356)10 x 14 (254 x 356)
D Handlebar Length [in. (mm)]36 (914)36 (914)36 (914)
E Pad Distance From Bail [in. (mm)]5 (127)5 (127)5 (127)
F Pad Distance From Frame [in. (mm)]2 (51)2 (51)2 (51)
G Maximum Vertical Headroom [in. (mm)]48 (1219)48 (1219)48 (1219)
H Maximum Horizontal Headroom [in. (mm)]40 (1016)40 (1016)40 (1016)
J Pad Distance from Handlebar [in. (mm)]14 (356)14 (356)14 (356)
Maximum Plate Dimensions [ft. (M)]8 x 6 (2.5 x 1.8)10 x 6 (3.1 x 1.8)12 x 6 (3.7 x 1.8)
Pad NumberFP100140FP100140FP100140
Optional Parking StandsPS-150-3X3PS-150-3X3PS-150-3X3

*Air Consumption is “0” on a non-porous material once the vacuum level is reached at peak value

Standard Electric Powered Rubber Seal Lifting Tilters Specifications

Request For Quote

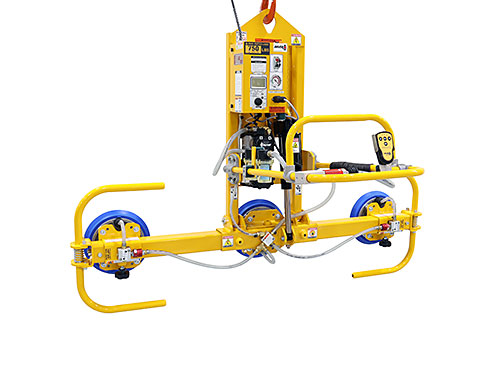

Electric Powered Lifter ModelET75M3-61ET75M3-86ET75M3-110
Rated Load Capacity [lbs (kg.)]750 (340)750 (340)750 (340)
Unit Weight [lbs (kg.)]250 (113)265 (120)280 (127)
Power Required115V/60Hz/1Ph/11A115V/60Hz/1Ph/11A115V/60Hz/1Ph/11A
Tilt Speed [Sec.]22
(**25% Duty Cycle)
22
(**25% Duty Cycle)
22
(**25% Duty Cycle)
Tilt Cycles Per Hour202020
A Pad Distances Max. [in. (mm)]66 (1676)91 (2311)115 (2921)
A Pad Distances Min. [in. (mm)]38 (965)38 (965)38 (965)
B Beam Length [in. (mm)]63 (1600)88 (2235)112 (2845)
C Pad Dimension [in. (mm)]12 (305)12 (305)12 (305)
D Handlebar Length [in. (mm)]36 (914)36 (914)36 (914)
E Pad Distance From Bail [in. (mm)]5 (127)5 (127)5 (127)
F Pad Distance From Frame [in. (mm)]2 (51)2 (51)2 (51)
G Maximum Vertical Headroom [in. (mm)]45 (1143)45 (1143)45 (1143)
H Maximum Horizontal Headroom [in. (mm)]40 (1016)40 (1016)40 (1016)
J Pad Distance from Handlebar [in. (mm)]14 (356)14 (356)14 (356)
Maximum Plate Dimensions [ft. (M)]8 x 6 (2.5 x 1.8)10 x 6 (3.1 x 1.8)12 x 6 (3.7 x 1.8)
Pad NumberVP122VP122VP122
Optional Parking StandsPS-150-3X3PS-150-3X3PS-150-3X3

**Example of “25% Duty Cycle”, 25 seconds continuous, 75 seconds rest.

Standard Electric Powered Foam Seal Lifting Tilters Specifications

Request For Quote
Electric Powered Lifter ModelET75M3-61FPET75M3-86FPET75M3-110FP
Rated Load Capacity [lbs (kg.)]750 (340)750 (340)750 (340)
Unit Weight [lbs (kg.)]265 (120)280 (127)300 (136)
Power Required115V/60Hz/1Ph/11A115V/60Hz/1Ph/11A115V/60Hz/1Ph/11A
Tilt Speed [Sec.]22
(**25% Duty Cycle)
22
(**25% Duty Cycle)
22
(**25% Duty Cycle)
Tilt Cycles Per Hour202020
A Pad Distances Max. [in. (mm)]64 (1626)89 (2261)115 (2870)
A Pad Distances Min. [in. (mm)]36 (914)36 (914)36 (914)
B Beam Length [in. (mm)]63 (1600)88 (2235)112 (2845)
C Pad Dimension [in. (mm)]10 x 14 (254 x 356)10 x 14 (254 x 356)10 x 14 (254 x 356)
D Handlebar Length [in. (mm)]36 (914)36 (914)36 (914)
E Pad Distance From Bail [in. (mm)]5 (127)5 (127)5 (127)
F Pad Distance From Frame [in. (mm)]2 (51)2 (51)2 (51)
G Maximum Vertical Headroom [in. (mm)]48 (1219)48 (1219)48 (1219)
H Maximum Horizontal Headroom [in. (mm)]40 (1016)40 (1016)40 (1016)
J Pad Distance from Handlebar [in. (mm)]14 (356)14 (356)14 (356)
Maximum Plate Dimensions [ft. (M)]8 x 6 (2.5 x 1.8)10 x 6 (3.1 x 1.8)12 x 6 (3.7 x 1.8)
Pad NumberFP100140FP100140FP100140
Optional Parking StandsPS-150-3X3PS-150-3X3PS-150-3X3

**Example of “25% Duty Cycle”, 25 seconds continuous, 75 seconds rest.
