Modular Vacuum Lifting Frames

ANVER’S Standard Modular Vacuum Lifting Frames offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials.

8-Pad
2-Pad
4H-Pad
3-Pad
6-Pad
4-Pad
Slide 1
Hundreds of Combinations
Step 1: Select a Generator
Image is not available
Mechanical
Image is not available
Air/Electric/Battery
Step 2: Select Your Attachments
Image is not available
Pad Attachments
Image is not available
Lifting Frames
Step 3: Select Your Accessories
Image is not available
Parking Stands
Image is not available
Handlebar Accessories
Image is not available
Fork Truck Adaptors
Image is not available
EZTILT Adapter
 Single Pad Complete Mechanical Vacuum Lifters
M75S-1 Vacuum Lifter Series Typical Sheet Size (in Feet) Rated Load Capacity
M75S 5×5 750 lb 340 kg
M150S 5×5 1550 lb 703 kg
  Click here to view examples of Single-Pad Powered Generator Models
 Two Pad Vacuum Lifting Frames
LF-2_500x306 Standard Lifting Frames Typical Sheet Size (in Feet) Rated Load Capacity
L50M2- 6×6     8×6     12×6 500 lb 227 kg
L100M2- 6×6     8×6     12×6 1000 lb 454 kg
L150M2- 6×6     8×6     12×6 1500 lb 680 kg
L200M2- 6×6     8×6     12×6 2000 lb 907 kg
L220M2- 6×6     8×6     12×6 2200 lb 998 kg
L300M2- 8×6    12×6    16×6 3000 lb 1364 kg
L400M2- 8×6    12×6 4000 lb 1814 kg
L420M2- 12×6 4200 lb 1900 kg
L460M2- 12×6 4600 lb 2087 kg
L560M2- 12×6 12×8 5600 lb 2540 kg
L640M2- 12×6 12×8 6400 lb 2903 kg
icon-2-pad Click here to view examples of Non-Standard Two Pad Models
 Three Pad Vacuum Lifting Frames

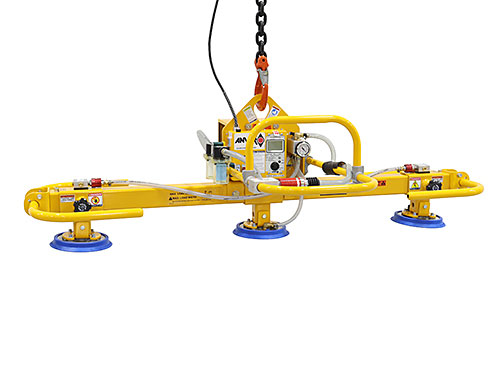

LF-3_500x306 Standard Lifting Frames Typical Sheet Size (in Feet) Rated Load Capacity
L75M3- 6×5   7×5   10×5   12×5 750 lb 340 kg
L150M3- 7x6   10×6   12×6   16×6 1500 lb 680 kg
L220M3- 7×6   10×6   12×6 2200 lb 998 kg
L300M3- 7×6 3000 lb 1364 kg
L330M3- 10×6   12×6   16×6 3300 lb 1497 kg
L420M3- 10×6   12×6 4200 lb 1900 kg
L690M3- 12×6 6900 lb 3130 kg
L840M3- 10×6   12×6   16×6 8400 lb 3810 kg
L960M3- 10×6   12×6   16×6 9600 lb 4355 kg
 Click here to view examples of Non-Standard Three Pad Models
 Four Pad In-line Vacuum Lifter Lifting Frames
LF-4_500x306 Standard Lifting Frames Typical Sheet Size (in Feet) Rated Load Capacity
L100M4- 9×5   12×5 1000 lb 454 kg
**L100M4-WT
(**Whippletree / Whiffletree)
20×3 1000 lb 454 kg
L200M4- 9×6   12×6   16×6   20×6 2000 lb 907 kg
L400M4- 12×6 4000 lb 1814 kg
L440M4- 12×6   16×6   20×6   25×6 4400 lb 1996 kg
LG920M4- 16-30 x 6 9200 lb 4173 kg
LG1120M4- 16-30 x 6 11200 lb 5080 kg
LG1280M4- 16-30 x 6 12800 lb 5806 kg
  Click here to view examples of Non-Standard Four Pad Inline Models
 Four Pad Vacuum Lifting Frames
LF-4H_500x306 Standard Lifting Frames Typical Sheet Size (in Feet) Rated Load Capacity
L50M4- 8×6   12×6 500 lb 227 kg
L100M4- 8×6   12×6 1000 lb 454 kg
L200M4- 8×6   12×6 2000 lb 907 kg
L300M4- 12×6 3000 lb 1361 kg
L400M4- 8×6   12×6 4000 lb 1814 kg
L440M4- 12×6 4400 lb 1996 kg
  Click here to view examples of Non-Standard Four Pad Adjustable Crossarm Models
 Six Pad Vacuum Lifting Frames
LF-6_500x306 Standard Lifting Frames Typical Sheet Size (in Feet) Rated Load Capacity
L90M6- 7×6   10×6   12×6 900 lb 410 kg
L120M6- 10×6   12×6 1200 lb 544 kg
L150M6- 10×6   12×6   16×8 1500 lb 680 kg
L300M6- 10×6   12×6   16×8 3000 lb 1364 kg
  Click here to view examples of Non-Standard Six Pad Adjustable Crossarm Models
 Eight Pad Vacuum Lifting Frames
LF-8_500x306 Standard Lifting Frames Typical Sheet Size (in Feet) Rated Load Capacity
L80M8- 9x6   12×6 800 lb 363 kg
L120M8- 9×6   12×6   16×8   20×8 1200 lb 544 kg
L160M8- 9×6   12×6 1600 lb 730 kg
L200M8- 9×6   16×8   20×8   25×8 2000 lb 900 kg
L210M8- 12×6 2100 lb 953 kg
L400M8- 12×6   16×8   20×8   25×8 4000 lb 1814 kg
LG600M8- 30-40 x 8-10 6000 lb 3629 kg
LG800M8- 30-40 x 8-10 8000 lb 3629 kg
LG1040M8- 20-40 x 8-10 10400 lb 4717 kg
LG1240M8- 20-40 x 8-10 12400 lb 5625 kg
LG1600M8- 20-40 x 8-10 16000 lb 7257 kg
LG1840M8- 20-40 x 8-10 18400 lb 8346 kg
LG2240M8- 20-45 x 8-10 22400 lb 10160 kg
LG2560M8- 20-45 x 8-10 25600 lb 11612 kg
  *Contact ANVER for more information, or fill out a quote form and a Sales Engineer will respond shortly.
 Ten Pad Vacuum Lifting Frames
Standard Lifting Frames Typical Sheet Size (in Feet) Rated Load Capacity
M100M10- 12×8   12×10   20×8   20×10 1000 lb 454 kg
*L300M10- Consult Engineering 3000 lb 1364 kg
*L500M10- Consult Engineering 5000 lb 2268 kg
LG750M10- 25-50 x 8-10 7500 lb 3402 kg
LG1000M10- 25-50 x 8-10 10000 lb 4536 kg
M1000M10-  20×8   20×10   20×12 10000 lb 4536 kg
LG1300M10- 25-50 x 8-10 13000 lb 5897 kg
LG1550M10- 25-50 x 8-10 15500 lb 7031 kg
M1700M10- 35×12 17000 lb 7711 kg
M1800M10- 40×12 18000 lb 8165 kg
LG2000M10- 25-50 x 8-10 20000 lb 9072 kg
LG2300M10- 25-50 x 8-10 23000 lb 10433 kg
  *Contact ANVER for more information, or fill out a quote form and a Sales Engineer will respond shortly.
 Twelve Pad Vacuum Lifting Frames
Standard Lifting Frames Typical Sheet Size (in Feet) Rated Load Capacity
LG300M12- 30-50 x 8-10 3000 lb 1361 kg
LG600M12- 30-50 x 8-10 6000 lb 2722 kg
LG900M12- 25-45 x 8-10 9000 lb 4082 kg
LG1200M12- 25-45 x 8-10 12000 lb 5443 kg
LG1560M12- 25-45 x 8-10 15600 lb 7076 kg
LG1860M12- 25-45 x 8-10 18600 lb 8436 kg
LG2400M12- 25-45 x 8-10 24000 lb 10886 kg
icon-12-pad *Contact ANVER for more information, or fill out a quote form and a Sales Engineer will respond shortly.
 Fourteen Pad Vacuum Lifting Frames
Standard Lifting Frames Typical Sheet Size (in Feet) Rated Load Capacity
LG350M14- 30-50 x 8-10 3500 lb 1588 kg
LG700M14- 30-50 x 8-10 7000 lb 3175 kg
LG1050M14- 25-40 x 8-10 10500 lb 4763 kg
LG1400M14- 25-40 x 8-10 14000 lb 6350 kg
LG1820M14- 25-40 x 8-10 18200 lb 8255 kg
LG2100M14- 25-40 x 8-10 21000 lb 9525 kg
icon-14-pad *Contact ANVER for more information, or fill out a quote form and a Sales Engineer will respond shortly.
Custom Vacuum Lifters
ANVER Vacuum Lifters are designed in a modular fashion. Standard components are selected to match the application

(given the vast selection and inventory that we offer, this means a lifter to match almost any application can be quickly built).
Mechanical Models Electric Powered Models Air Powered Models

High Flow Models



Our applications engineers are always available to assist you in selecting the right vacuum lifter. Call, e-mail or fill out our info/quote form for assistance.

ANVER Vacuum Lifters comply fully with and meet the standards of US ANSI ASME Standard B30.20 for below-the-hook lifting devices, as well as complying with OSHA and most European requirements.  Click here for more information on these safety standards.
